1
Engine displacement
800
2
Year
2004
3
Trim
800 FRONTIER CLASSIC
4
Parts Catalog
REAR TORQUE ARM (M-10)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM (M-10)
by
SHOCK (FRONT TRACK)(M-10)
REAR TORQUE ARM (M-10)
5
5
6
7
8
8
8
9
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
20
34
35
36
37
38
1
SHAFT UPPER M-10
5132578
9999999
Not Available
2
TORQUE ARMM-10BLK
1541527067
Not Available
2
WELD-TORQUE ARM;M10 ACE;BLK
1541894067
Not Available
3
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
9999999
Not Available
5
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
6
SHAFT; LOWER
5133093
9999999
Not Available
7
DECAL-M-10FOXRES
7079432
9999999
Not Available
8
BEARING
3514330
9999999
Not Available
8
OFFSET WHEEL ASSEMBLY
1590308
9999999
Not Available
8
INTERNAL RETAINING RING
7710471
9999999
Not Available
9
BEARING LOCK COLLAR; REAR
5132582
9999999
Not Available
9
SCREW-SOCKETSET
7512257
$7,34 Unit Price incl. VAT
10
FLAT WASHER
7555984
$4,19 Unit Price incl. VAT
11
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
12
SCR-7/16-14X1.25SOCHD-P80-DGPT
7517815
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SHOCK-REAR TRACKRE24M10
7042149
9990000
Not Available
14
SHOCK-REAR TRACKREZY-M-10
7042216
9990000
Not Available
15
SLEEVE .385 X .560 X 1.24
5333905
$27,29 Unit Price incl. VAT
16
CAP-ICE
5244747
9999999
Not Available
17
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
18
NUT-PRELOAD
5132645
9999999
Not Available
19
SPRING-REAR SHOCKM10BLACK
7041935067
Not Available
20
BUSHING-OVER LOAD DEPRESSOR
5433882
9999999
Not Available
21
RETAINER-REAR SPRING
5133032
9999999
Not Available
22
SPRING-REAR OVER/LOADM-10BLK
7041936067
Not Available
23
RING-ADJUSTER
5132625
9999999
Not Available
24
NUT-RING ADJUSTER
5132643
9999999
Not Available
25
SLEEVE-OVER LOAD DEPRESSOR
5132794
9999999
Not Available
26
RETAINER-SPRING M10 ACE LOWER
5133746
9999999
Not Available
27
SPRING-COM .515R 6.40 715# BLK
7042208067
Not Available
28
BUSHING-NYLON PRELOAD COLLAR
5434896
9999999
Not Available
29
PAD-FOAM ADHESIVE 1/2X4
5812432
9999999
Not Available
30
CLAMP-HOSE 2.0
7081119
9999999
Not Available
31
RETAINER-SPRING M10 ACE UPPER
5133747
9999999
Not Available
32
SPRING-COM .375R 5.20 273# BLK
7042207067
Not Available
33
BUSHING-OVER LOAD DEPRESSOR
5433882
9999999
Not Available
34
RETAINER-SPRING PRELOAD ADJUST
5133744
9999999
Not Available
35
COLLAR-SPRING PRELOAD ADJUST
5133745
9999999
Not Available
36
SPRING-COM .394R 5.46 629# BLK
7042206067
Not Available
37
COVERM10 RTS
2683223
9999999
Not Available
38
COLLAR-SPRING SLOTTED
5133778
9999999
Not Available

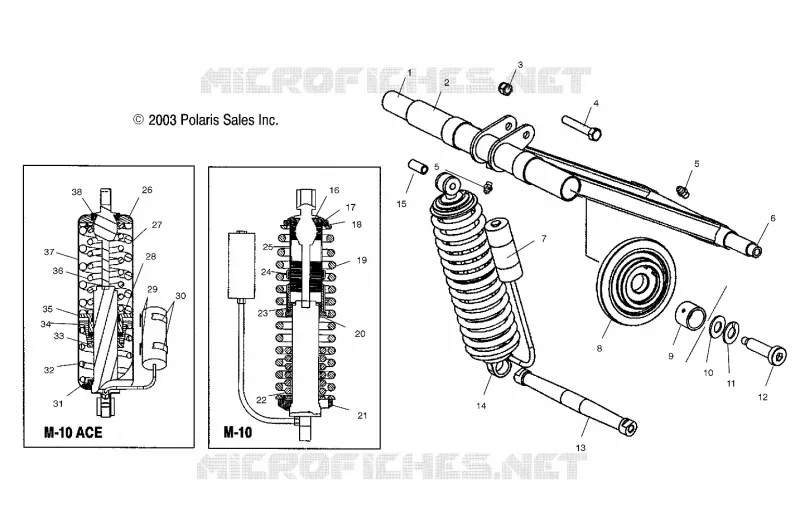

Find the detailed REAR TORQUE ARM (M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
