1
Engine displacement
500
2
Year
2003
3
Trim
500 XC SP EDGE M-10 F/O
4
Parts Catalog
DRIVE CLUTCH (MANUAL START MODELS)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH (ELECTRIC START MODELS)
by
DRIVE TRAIN
DRIVE CLUTCH (MANUAL START MODELS)
1
BOLT
7512265
9999999
Not Available
2
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
3
BEARING COVER
3576516
$62,99 Unit Price incl. VAT
4
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
5
CLUTCH SPRING; BLACK/GREEN
7042083
$115,49 Unit Price incl. VAT
5
SPRING-CLUTCH DARK BLUE/WHT
7041781
7043681
$115,49 Unit Price incl. VAT
6
GUIDE BUTTON
5430445
$11,54 Unit Price incl. VAT
7
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
8
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
9
ROLLER PIN; 1 IN
5133079
$11,54 Unit Price incl. VAT
10
DRIVE CLUTCH KIT
2200387
$47,24 Unit Price incl. VAT
11
WEIGHT BUSHING ASSEMBLY; 10-54 (3)
1321685
$73,49 Unit Price incl. VAT
11
SNOWMOBILE CLUTCH WEIGHT 58 G(3)
1321588
$73,49 Unit Price incl. VAT
12
HARDENED WEIGHT PIN
7515105
$26,24 Unit Price incl. VAT
13
BEARING SLEEVE
3576502
$40,94 Unit Price incl. VAT
14
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
15
SPACER .020
5210752
$3,14 Unit Price incl. VAT
15
SPACER .025
5242981
$7,34 Unit Price incl. VAT
15
SPACER .050
5210754
$6,29 Unit Price incl. VAT
15
SPACER .032
5210753
$4,19 Unit Price incl. VAT
16
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
17
JAM NUT
5020425
$41,99 Unit Price incl. VAT
18
ASM-DRIVE CLUTCHBASIC114 W/B
1321928
1322565
$1 049,99 Unit Price incl. VAT

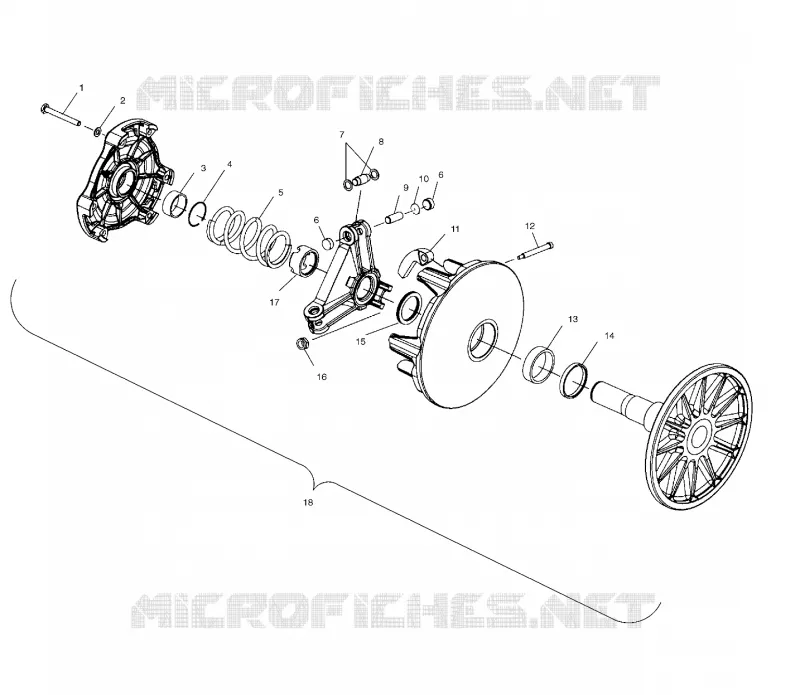

Find the detailed DRIVE CLUTCH (MANUAL START MODELS) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
