Engine displacement
500
2
Year
2003
3
Trim
500 XC SP EDGE M-10 F/O
4
Parts Catalog
SHIFT (REVERSE MODELS)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK
by
STARTING MOTOR
SHIFT (REVERSE MODELS)
1
HANDLE-REVERSESRP
5434142
9999999
Not Available
2
RIVET
7661637
$2,09 Unit Price incl. VAT
3
PIN; COTTER
7661010
$1,56 Unit Price incl. VAT
4
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
5
WASHER
7555933
9999999
Not Available
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
NUT
7542129
9999999
Not Available
8
ROD-END RH 1/4-28X.59
7061097
9999999
Not Available
9
BOLT
7512163
$7,34 Unit Price incl. VAT
10
ROD THREADED
5132361
9999999
Not Available
11
NUT JAM LH 1/4X28 .10)
7547088
9999999
Not Available
12
SCREW
7515415
9999999
Not Available
13
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
14
BUSHING-.385X.625X1.135
5334131
9999999
Not Available
15
ROD ENDLH1/4-28X.59
7061030
9999999
Not Available
16
WELD-SHIFT ACTUATOR
1341429
9999999
Not Available
17
CLEVIS PIN; 1/4 X 3/4
7661843
$4,19 Unit Price incl. VAT
18
BRKT-SHIFT LEVER;GUIDE;SRP
5245707
9999999
Not Available

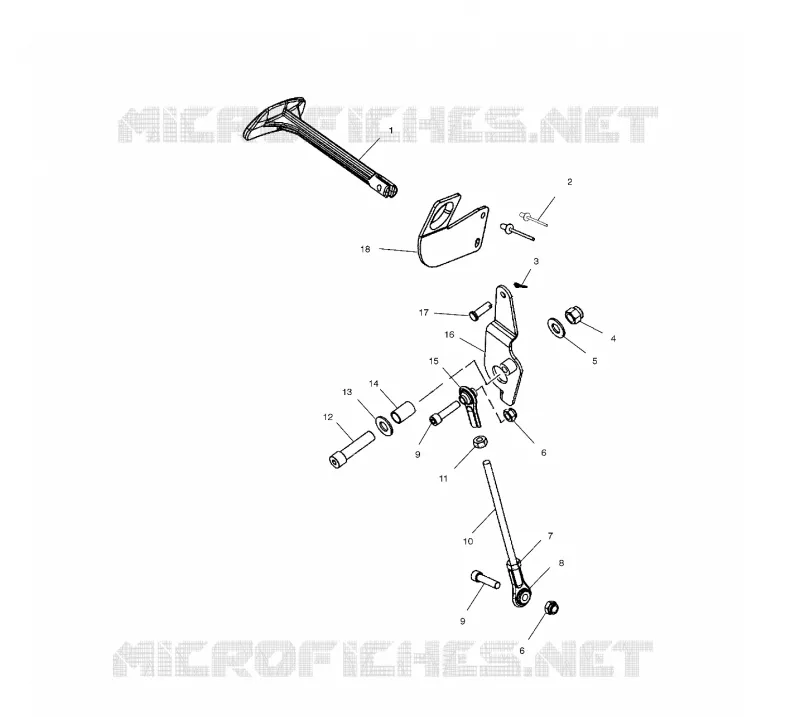

Find the detailed SHIFT (REVERSE MODELS) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
