1
Engine displacement
autre
2
Year
1998
3
Trim
LITE DELUXE - 0983431
4
Parts Catalog
EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
PISTON CRANKSHAFT LITE 0983433 AND LITE DELUXE 0983431 (4941864186C005)
EXHAUST SYSTEM
1
BOLT
7515354
9999999
Not Available
2
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
4
SHIELD MUFFLER
5222704
Not Available
5
MUFFLER (LITE GT)
1260578029
Not Available
6
SPRING
7042029
$10,49 Unit Price incl. VAT
7
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
8
VIBRATION DAMPENER
5410467
9999999
Not Available
9
WASHER THRUST
7555788
9999999
Not Available
10
MANIFOLD
1260497029
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

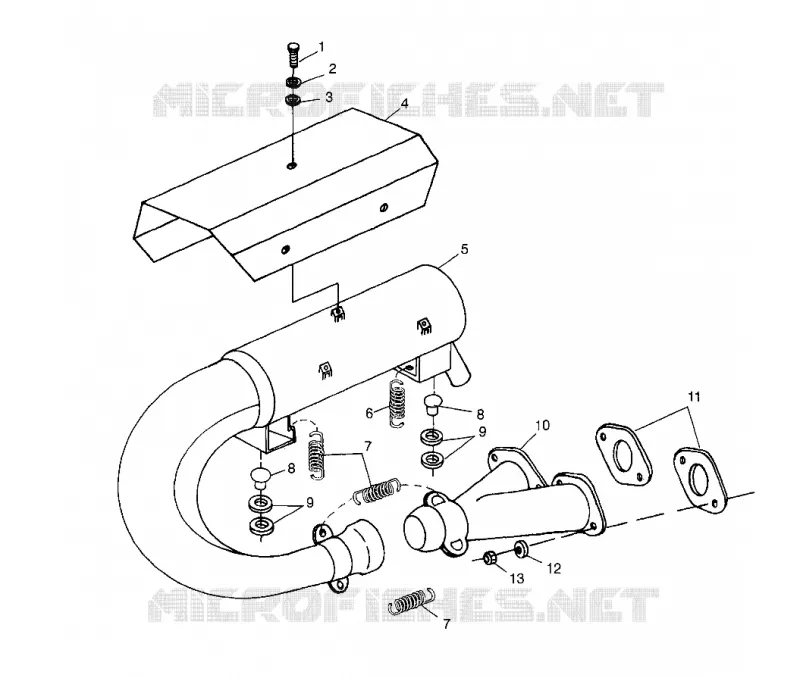

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
