Engine displacement
900
2
Year
2013
3
Trim
RANGER 900 XP ALL OPTIONS - R13UH88/UH9E
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
DRIVE TRAIN, MAIN GEARCASE INTERNALSS
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
1
2
2
2
2
3
3
3
3
4
4
5
5
6
8
9
10
1
OUTER CLUTCH COVER ASSEMBLY
2634179
$346,49 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
4
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
5
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
6
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
7
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
8
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
9
SCREW HI/LO M6 X 35
7519330
$7,34 Unit Price incl. VAT
10
ASM-COVER CLUTCH INNER
2634229
2635158
$314,99 Unit Price incl. VAT
11
HOSE-CLUTCH AIR INLET
5414565
9999999
Not Available
12
AIR OUTLET CLUTCH HOSE
5414537
$178,49 Unit Price incl. VAT
13
INTAKE HOSE; CLUTCH
5414564
9999999
Not Available
14
WORM DRIVE CLAMP
7081626
$14,69 Unit Price incl. VAT
15
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
16
BELT SCREEN BRACKET
5256957
$62,99 Unit Price incl. VAT
17
BOX-INTAKE CLUTCH
5439999
9999999
Not Available
18
DUCT-INTAKE CLUTCH
5450000
9999999
Not Available
19
PAD-CLUTCH DUCT
5813938
9999999
Not Available

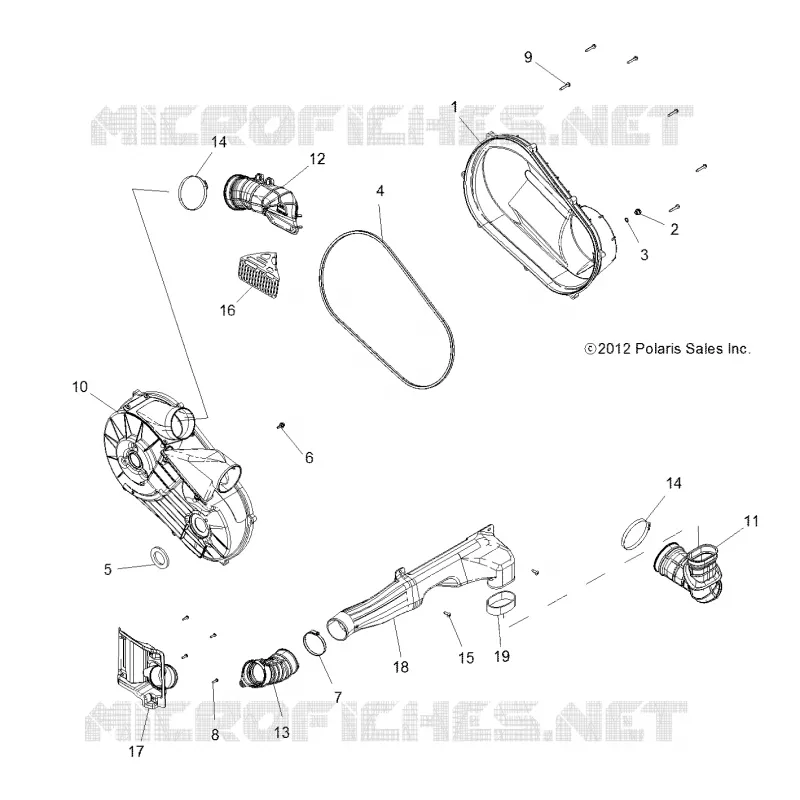

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
