Engine displacement
900
2
Year
2013
3
Trim
RANGER 900 XP ALL OPTIONS - R13UH88/UH9E
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
REAR SUSPENSION SHOCK
by
FRONT SUSPENSION SHOCK
FRONT SUSPENSION
1
A-ARM FRONT UPPER LEFT ORG MDN
1018167589
Not Available
1
WELD-A-ARM FR UPR RH ORG MAD
1018168589
Not Available
1
A-ARM WELD FRONT UPPER LEFT MT BLK
1018167458
Not Available
1
WELD-A-ARM FR UPR RH BLK
1018168458
Not Available
2
A-ARM WELD; LOWER; FRONT; RIGHT; MT BLK
1018170458
Not Available
2
A-ARM FRONT LOWER LEFT ORG MDN
1018169589
Not Available
2
A-ARM WELD; FRONT; LOWER; LEFT
1018169458
Not Available
2
A-ARM FRONT LOWER RIGHT ORG MDN
1018170589
Not Available
3
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
4
BALL-JOINT 10MM STUD
7081665
7082507
$89,24 Unit Price incl. VAT
5
EXTERNAL RETAINER RING
7710533
$4,19 Unit Price incl. VAT
6
PIVOT TUBE; 70.99 MM
5136100
9999999
Not Available
6
PIVOT SHAFT
5138797
$16,79 Unit Price incl. VAT
7
A ARM PIVOT SHAFT 250MM LONG X15.88 OUT
5138791
$52,49 Unit Price incl. VAT
7
PIVOT TUBE 250.28 MM
5137104
5138791
$52,49 Unit Price incl. VAT
8
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
8
CONTROL ARM BUSHING
5439730
$4,19 Unit Price incl. VAT
9
CARRIER-BEARING FRONT LH(MACH)
5138231
5139976
$188,99 Unit Price incl. VAT
9
CARRIER-BEARING FRONT RH(MACH)
5138232
5139977
$182,69 Unit Price incl. VAT
10
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
11
SEALED BALL BEARING; 44 X 72 X 33.1
3514699
$73,49 Unit Price incl. VAT
12
CV SHIELD; FRONT; GLOSS BLACK
5438641070
Not Available
13
SCREW
7512084
$2,09 Unit Price incl. VAT
14
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
15
BOLT M10 THREAD X1.25 PITCH X 275MM LONG
7519087
$26,24 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT
17
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
18
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT

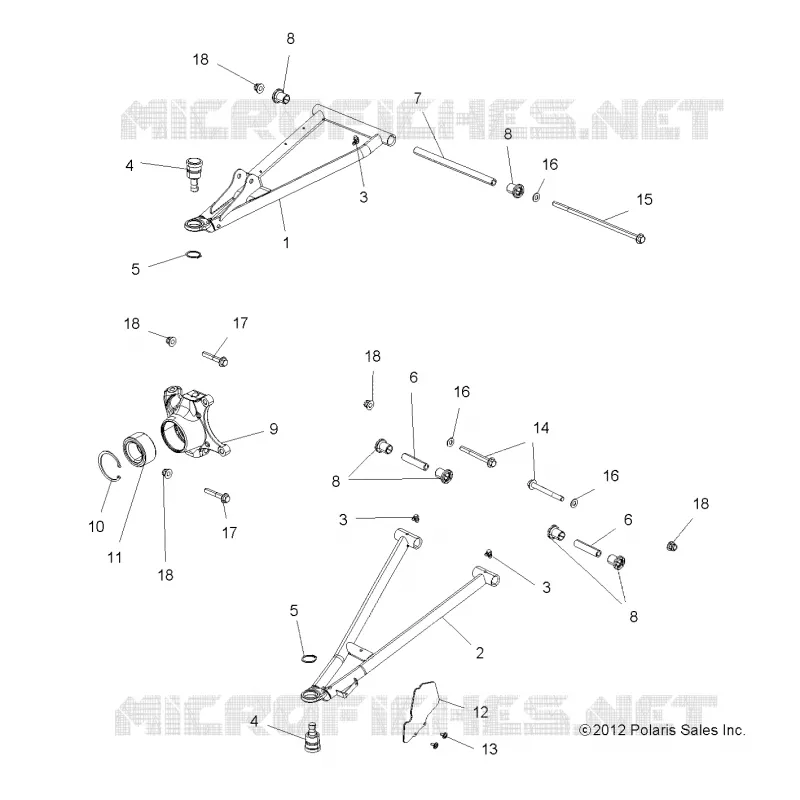

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
