BODY, SEAT AND SEAT BELT MOUNTING for POLARIS SLINGSHOT / SL / SLR from 2017

BODY, SEAT AND SEAT BELT MOUNTING

1

ASM-SEAT BTM FG RUSH STX GS

2687332VBC

Not Available

1

ASM-SEAT BTM BLACK KIXX STX

2687308VBA

Not Available

1

ASM-SEAT BTM FG RUSH STX OS

2687332VBB

Not Available

1

ASM-SEAT BTM STX RUSH TOUR

2687308VBB

Not Available

1

ASM-SEAT BTM ORG M.KIXX STX

2687308VOA

Not Available

1

ASM-SEAT BTM;TBO;SLVR;KIXX;STX

2687308VNA

Not Available

2

BOLT

7512520

$9,44 Unit Price incl. VAT

3

PASSENGER SEAT BUCKLE ASSEMBLY

2635731

$115,49 Unit Price incl. VAT

4

ASM-SEAT BACKBLACKKIXXSTX

2687598VBA

Not Available

4

ASM-SEAT BACK FG RUSH STX OS

2687333VBB

Not Available

4

SEATBACK ASSEMBLY TURBO SLIVER

2687598VNA

Not Available

4

SEAT ASSEMBLY BACK

2687309VBB

Not Available

4

SEAT BACK ASSEMBLY; SLINGSHOT

2687333VBC

Not Available

4

ASM-SEAT BACK ORG M KIXX STX

2687598VOA

Not Available

4

SEAT BACK ASSEMBLY

2687598VNB

Not Available

4

ASM-SEATBACK TBO SLVR KIXX STX

2687309VNA

Not Available

4

ASM-SEAT BACKBLACKKIXXSTX

2687309VBA

Not Available

5

HEX FLANGE SCREW 12MM X 1.75MM 14MM X9MM

7519770

$8,39 Unit Price incl. VAT

6

SEATBELT WASHER; RUBBER

5813829

$2,09 Unit Price incl. VAT

7

SEAT BELT ASSEMBLY

2635442

$309,74 Unit Price incl. VAT

8

SCR-HXFL-M10X1.5X20 CL8.8 ZPB

7519787

$13,64 Unit Price incl. VAT

9

SCR-HXFL-M6X35 ZINCBLK.0003

7519989

$6,08 Unit Price incl. VAT

10

SCR-M12X1.75X45MM HXHDFLG

7519768

$13,64 Unit Price incl. VAT

11

BOLT-M10X1.5X75 HX HD FLG

7518473

$9,44 Unit Price incl. VAT

12

DRIVER SEAT BUCKLE ASSEMBLY

2635730

9999999

Not Available

13

SEAT FRAME WELD; BACK

1018787

9999999

Not Available

14

FRAME WELD SEAT BOTTOM RIGHT

1021240

9999999

Not Available

15

WELD-FRAME SEAT BTM LH

2686180

9999999

Not Available

16

HEX FLANGE SCREW; 10 MM X 1.5 MM X 30 MM

7519803

$13,64 Unit Price incl. VAT

17

SCR-HEXFLGHD M12X90 0600086

7518705

$16,79 Unit Price incl. VAT

18

ASM-WIRE GUIDE SEATBELT RH CHR

2637550156

Not Available

19

ASM-WIRE GUIDE SEATBELT LH CHR

2637549156

Not Available

20

SEATBELT GUIDE KIT

2208021

$195,29 Unit Price incl. VAT

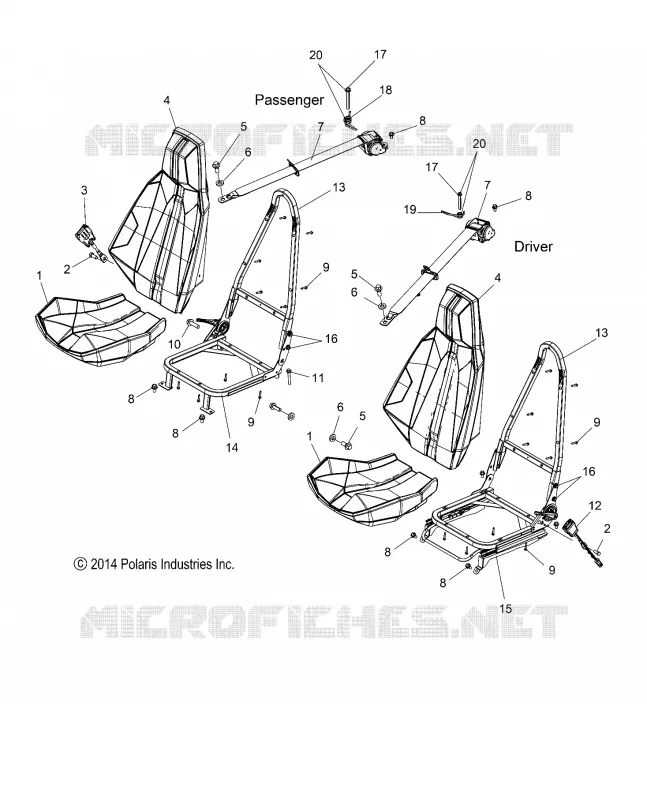

Find the detailed BODY, SEAT AND SEAT BELT MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
