1
Engine displacement
2400
2
Year
2017
3
Trim
SLINGSHOT / SL / SLR
4
Parts Catalog
BODY, HOOD AND FENDER ASM.
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN, AND REAR ASM.
by
BODY, INTERIOR
BODY, HOOD AND FENDER ASM.
-
1
2
2
2
2
3
3
3
4
4
4
4
4
4
4
5
5
5
5
5
5
5
6
7
7
7
7
7
8
9
9
9
9
9
9
9
10
10
10
10
10
10
10
11
11
11
12
13
14
14
15
15
16
16
17
18
19
20
20
21
22
22
22
22
23
23
24
24
24
25
26
26
26
26
26
27
28
29
29
30
31
32
32
33
33
-
3M 4952 VHB TAPE;150 MM LONG
8360141
9999999
Not Available
1
GUARD-SPLASH RH
5452900
5467526
Not Available
2
FOIL-ROCKER RH
5814623
9999999
Not Available
2
ROCKER PANEL; UPPER; RIGHT; FOAM
5522195
9999999
Not Available
2
FOAM-ROCKER PANEL;LOWER;RH
5522197
9999999
Not Available
2
PANEL-ROCKER FRONT RH
5453439
2207676
$467,24 Unit Price incl. VAT
3
ACCENT PANEL; RIGHT
5439643
$629,99 Unit Price incl. VAT
3
PANEL-ACCENT RH BLACK PEARL
5453303666
Not Available
3
ACCENT PANEL; RIGHT; PEARL WHITE II
5453709566
Not Available
4
FENDER-FRONT RH BLK PRL
5439641666
Not Available
4
FENDER FRONT RIGHT
5439641070
Not Available
4
FENDER FRONT RIGHT GLOSS NA
5439641727
Not Available
4
FENDER FRONT RIGHT
5439641520
Not Available
4
FENDER FRONT RIGHT ORANGE M
5439641589
Not Available
4
FENDER; FRONT; RIGHT; TURBO SILVER; GLS
5439641402
Not Available
4
FENDER FRONT RIGHT MIDNIGHT
5439641554
Not Available
5
FENDER TRIM; RIGHT; ORANGE MADNESS
5450050589
Not Available
5
FENDER TRIM; RIGHT; BLACK PEARL
5450050666
Not Available
5
TRIM-FENDER RH GLS TRBO SILVER
5450050402
Not Available
5
FENDER TRIM; RIGHT; GLOSS NAVY BLUE
5450050727
Not Available
5
TRIM-FENDER RH GLOSS BLACK
5450050070
Not Available
5
TRIM-FENDER RH MIDNIGHT CHERRY
5450050554
Not Available
5
FENDER TRIM; RIGHT; SUNSET RED
5450050520
Not Available
6
CENTER HOOD VENT
5452300
$157,49 Unit Price incl. VAT
7
HOOD PANEL; MAIN; BLACK PEARL
5452895666
Not Available
7
HOOD PANEL; MAIN; MIDNIGHT CHERRY
5452895554
Not Available
7
MAIN HOOD PANEL; SUNSET RED
5452895520
Not Available
7
MAIN HOOD PANEL; GLOSS GLOSS BLACK
5452895070
Not Available
7
MAIN HOOD PANEL; GLOSS NAVY BLUE
5452895727
Not Available
8
SUBSTRUCTURE-HOOD
5452637
5455591
$2 189,24 Unit Price incl. VAT
9
FENDER TRIM; LEFT; ORANGE MADNESS
5450049589
Not Available
9
FENDER TRIM; LEFT; GLOSS NAVY BLUE
5450049727
Not Available
9
TRIM-FENDER LH SUNSET RED
5450049520
Not Available
9
TRIM-FENDER LH GLS TRBO SILVER
5450049402
Not Available
9
TRIM-FENDER LH MIDNIGHT CHERRY
5450049554
Not Available
9
FENDER TRIM; LEFT; GLOSS BLACK
5450049070
Not Available
9
TRIM-FENDER LH BLK PRL
5450049666
Not Available
10
FENDER FRONT LEFT MIDNIGHT CHERRY
5439640554
Not Available
10
FENDER FRONT LEFT
5439640727
Not Available
10
FENDER; FRONT; LEFT
5439640520
Not Available
10
FENDER FRONT LEFT TURBO SIL
5439640402
Not Available
10
FENDER FRONT LEFT BLACK PEA
5439640666
Not Available
10
FENDER FRONT LEFT
5439640589
Not Available
10
FENDER; FRONT; LEFT; GLOSS BLACK
5439640070
Not Available
11
ACCENT PANNEL; LEFT
5439642
$629,99 Unit Price incl. VAT
11
ACCENT PANEL; LEFT
5453708566
Not Available
11
PANEL-ACCENT LH BLACK PEARL
5453302666
Not Available
12
SPLASH GUARD LEFT
5452899
5467525
Not Available
13
PANEL-ROCKER FRONT LH
5453438
5454854
$467,24 Unit Price incl. VAT
14
HEADLIGHT POD; LEFT
5452307
$209,99 Unit Price incl. VAT
14
HEADLIGHT POD; LEFT
5453406
9999999
Not Available
15
HEADLIGHT POD; RIGHT
5453407
$209,99 Unit Price incl. VAT
15
HEADLIGHT POD; RIGHT
5452308
$209,99 Unit Price incl. VAT
16
HOOD NOSE W/O LIGHTS; FRONT
5453876
9999999
Not Available
16
NOSE-FRONT HOOD W-HEADLIGHTS
5452309
5457497
$556,49 Unit Price incl. VAT
17
SPLASH GUARD RETAINER; LEFT
5453038
$78,74 Unit Price incl. VAT
18
SPLASH GUARD RETAINER; RIGHT
5453037
$78,74 Unit Price incl. VAT
19
PLATE-MNT CLOSEOUT
5258555
$13,64 Unit Price incl. VAT
20
WASHER
7556034
$4,19 Unit Price incl. VAT
20
RIVET
7621460
$2,09 Unit Price incl. VAT
21
BOLT M6 X 1.0 X 15
7520011
$4,19 Unit Price incl. VAT
22
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
23
SCR-M6X1X14 PN/TX TRI-LOB
7518914
$6,29 Unit Price incl. VAT
24
SCREW
7512026
$2,09 Unit Price incl. VAT
25
OPEN HOOD HANDLE; BLACK
5259802329
Not Available
26
BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM
7519774
$7,34 Unit Price incl. VAT
27
BUMPER-RUBBER .62 STEALTH
5411435
$6,29 Unit Price incl. VAT
28
BRKT-STRIKER FENDER HOOD
5262624
9999999
Not Available
29
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
30
NUT
7710495
$9,44 Unit Price incl. VAT
31
TINNERMAN CLIP
7670136
$4,19 Unit Price incl. VAT
32
COVER SPEAKER RH
5453785
9999999
Not Available
32
SPEAKER COVER; RIGHT
5453796
9999999
Not Available
33
SPEAKER COVER; LEFT
5453795
9999999
Not Available
33
COVER SPEAKER LH
5453784
9999999
Not Available

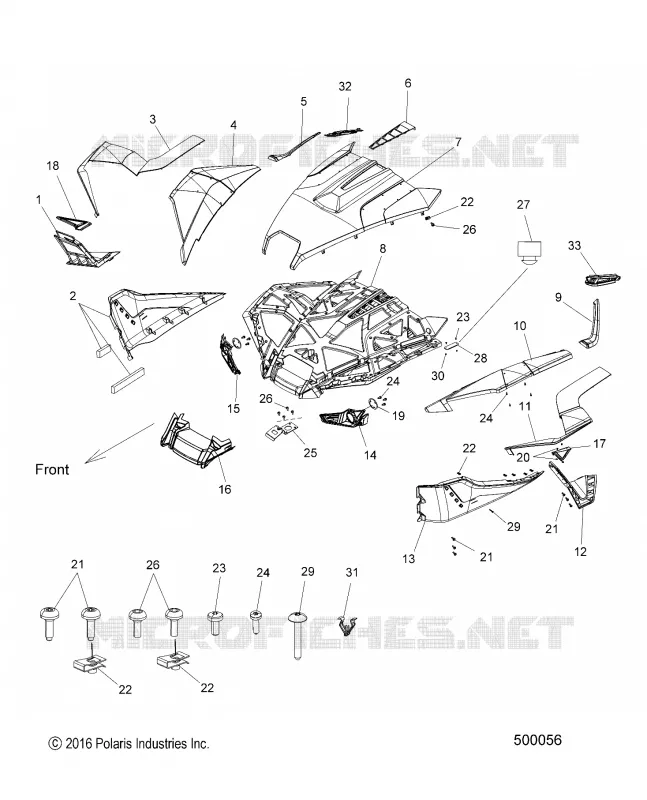

Find the detailed BODY, HOOD AND FENDER ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
