Engine displacement
500
2
Year
2015
3
Trim
500 WIDETRAK LX
4
Parts Catalog
FUEL SYSTEM, FUEL TANK AND HOSES
5
Parts Diagram
Parts Catalog
OIL TANK
by
TOOL KIT
FUEL SYSTEM, FUEL TANK AND HOSES
1
1
2
3
4
5
6
7
8
9
10
10
10
10
11
12
12
12
12
13
14
15
16
17
18
19
20
20
21
22
22
22
22
1
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
1
GAS CAP WITH GAUGE
2511246
$83,99 Unit Price incl. VAT
2
FUEL TANK ASSEMBLY
2521254
9999999
Not Available
3
FUEL PICKUP;W/FILTER
7052243
7052301
$26,24 Unit Price incl. VAT
4
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
5
FUEL LINE-ESTER
8350019600
Not Available
6
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
7
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
8
CABLE TIE-RELEASABLE;5 1/2
7080804
$6,29 Unit Price incl. VAT
9
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
10
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
11
TUBING CONVOLUTED
8360052305
Not Available
12
FUEL HOSE; 250 CM
8450117250
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
FUEL LINE; 600 CM
8450040600
Not Available
15
FUEL VALVE; PLASTIC; INCLINE 1/4 IN
7052248
$52,49 Unit Price incl. VAT
16
SPRING; TANK
7042020
9999999
Not Available
17
WELL NUT
7541923
$10,49 Unit Price incl. VAT
18
WASHER
7552604
$3,14 Unit Price incl. VAT
19
SCREW(10)
7512222
9999999
Not Available
20
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
21
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
22
CLAMP HOSE
7080558
9999999
Not Available

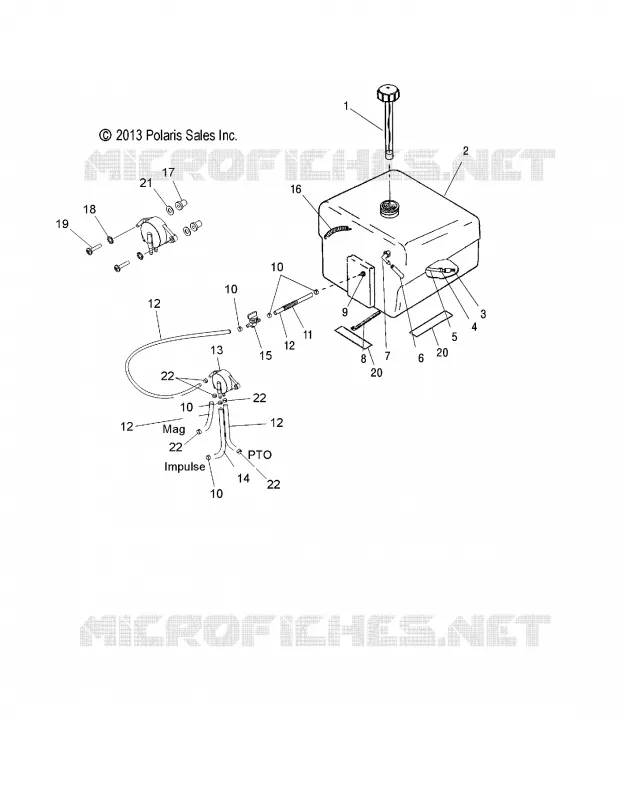

Find the detailed FUEL SYSTEM, FUEL TANK AND HOSES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
