Engine displacement
500
2
Year
2015
3
Trim
500 WIDETRAK LX
4
Parts Catalog
DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE SYSTEM
by
DRIVE TRAIN, GEARCASE (1 OF 2)
DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT
1
1
19
19
19
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
19
19
1
O-RING
5410630
9999999
Not Available
2
SCREW
7517446
$15,74 Unit Price incl. VAT
2
COUPLER ASM LONG 19 TOOTH W/ GREASE
1332219
$220,49 Unit Price incl. VAT
2
GREASE ZERK
7080437
9999999
Not Available
3
JACKSHIFT ASSEMBLY; LONG KEY
1332256
9999999
Not Available
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
6
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
7
BEARING
3514525
$54,59 Unit Price incl. VAT
8
KEY-1/4 X 3/16 X 2.25
7721132
9999999
Not Available
9
GASKET JACKSHAFT 2-BOLT
5830135
$5,24 Unit Price incl. VAT
10
FLANGETTE; GREASABLE
5222647
$47,24 Unit Price incl. VAT
11
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
12
ADAPTER DRIVE W/ ZERK
3280540
$188,99 Unit Price incl. VAT
12
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
13
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
14
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
15
OFFSET FLANGETTE WITH HOLE
5243529
9999999
Not Available
16
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
17
BEARING-25MM SPH OD LUBE
3514448
3514617
$54,59 Unit Price incl. VAT
17
FLANGETTE W/ SCREWS ASSEMBLY
1012945
9999999
Not Available
18
DRIVE SHAFT
1590450
$939,74 Unit Price incl. VAT
19
COUPLER W/ GREASE ZERK ASM 19 TOOTH
1332260
$325,49 Unit Price incl. VAT
19
GREASE ZERK
7080437
9999999
Not Available

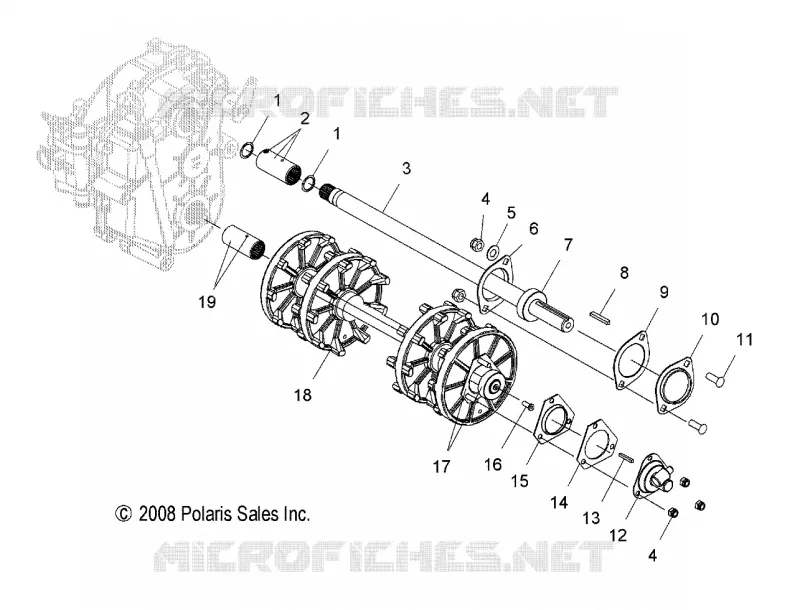

Find the detailed DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
