1
Engine displacement
300
2
Year
1997
3
Trim
XPLORER 300 - W97CC28C
4
Parts Catalog
DRIVE CLUTCH XPLORER 300 W97CC28C (4939813981C001)
5
Parts Diagram
Parts Catalog
CENTER TIGHTENER (AFTER 3/17/97) XPLORER 300 W97CC28C (4939813981B015)
by
REAR WHEEL DRIVE XPLORER 300 W97CC28C (4939813981C007)
DRIVE CLUTCH XPLORER 300 W97CC28C (4939813981C001)
1
2
3
4
5
5
6
7
8
9
10
10
10
10
10
10
10
10
10
11
12
13
14
1
BOLT
7512176
7512163
$7,34 Unit Price incl. VAT
2
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
3
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
4
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
5
BUTTON CLUTCH (10)
5431936
5439254
$14,69 Unit Price incl. VAT
6
SHIFT WEIGHT
5630514
9999999
Not Available
7
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
8
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
9
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
10
SPACER .020
5210752
$3,14 Unit Price incl. VAT
10
SPACER .050
5210754
$6,29 Unit Price incl. VAT
10
SPACER .032
5210753
$4,19 Unit Price incl. VAT
11
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
12
CLUTCH SPRING
7041157
$89,24 Unit Price incl. VAT
13
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
14
CLUTCH DRIVE
1321632
1321976
$1 081,49 Unit Price incl. VAT

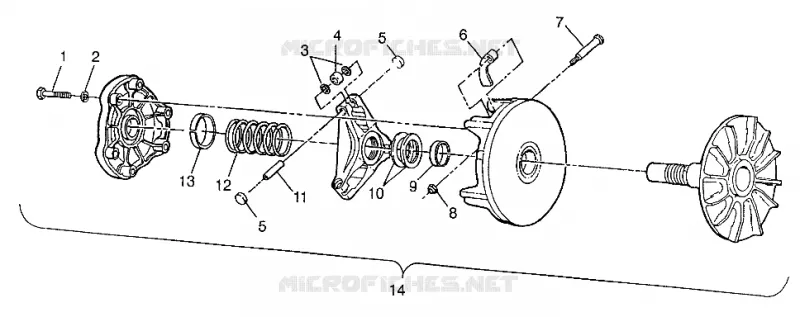

Find the detailed DRIVE CLUTCH XPLORER 300 W97CC28C (4939813981C001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
