1
Engine displacement
300
2
Year
1997
3
Trim
XPLORER 300 - W97CC28C
4
Parts Catalog
CENTER TIGHTENER XPLORER 300 W97CC28C (4939813981B014)
5
Parts Diagram
Parts Catalog
WISHBONES XPLORER 300 W97CC28C (4939813981B013)
by
CENTER TIGHTENER (AFTER 3/17/97) XPLORER 300 W97CC28C (4939813981B015)
CENTER TIGHTENER XPLORER 300 W97CC28C (4939813981B014)
1
2
3
3
3
3
4
4
5
5
6
6
7
8
9
9
10
10
11
11
12
13
14
15
1
ECCENTRIC CTR 4BRGS MACH
5131374
9990005
Not Available
2
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
3
OPEN BEARING
3514402
9999999
Not Available
4
WASHER
7555917
$4,19 Unit Price incl. VAT
5
SEAL TIGHTENER
3610017
9999999
Not Available
6
O-RING
5410463
9999999
Not Available
7
SPACERCTR.TIGHT.
5020488
9999999
Not Available
8
SPROCKET; 12 TOOTH
3221044
$83,99 Unit Price incl. VAT
9
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
10
LOCK WASHER
7571611
9999999
Not Available
11
SCREW
7512492
$2,09 Unit Price incl. VAT
12
SHAFT CTR.TIGHTENER 4BRGS
5020884
Not Available
13
SPACER CTR TIGHT
5020557
9999999
Not Available
14
SPROCKET; 22T
3222044
9999999
Not Available
15
TIGHTENER CTR 4 BRGS
1380103
9999999
Not Available

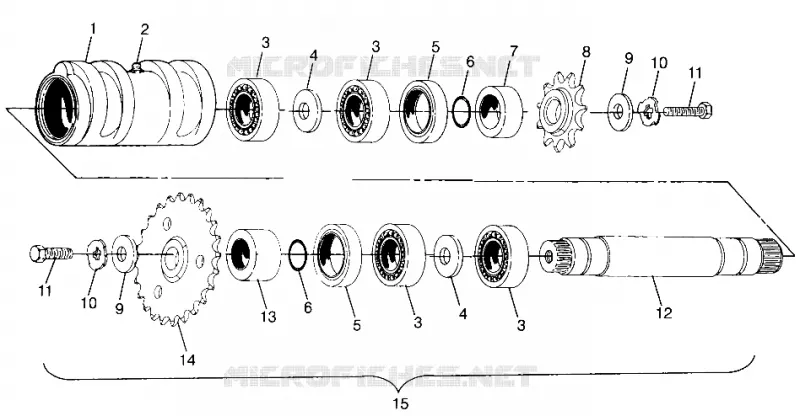

Find the detailed CENTER TIGHTENER XPLORER 300 W97CC28C (4939813981B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
