1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog
SEAT GAS TANK
5
Parts Diagram
Parts Catalog
CHASSIS
by
NOSEPAN
SEAT GAS TANK
1
CAP FUEL 12.5 W/GAUGE
1240066
9999999
Not Available
2
ASM-SEAT COVEREDGE STD
2682753
9999999
Not Available
2
ASM-SEAT EDGE STD
2682752
9999999
Not Available
2
ASM-SEAT EDGE STD
2682755
9999999
Not Available
2
ASM-COVER GENII STD
2682756
9999999
Not Available
3
GROMMET RELATCH 1 BOTT.
7080550
9999999
Not Available
4
GROMMET RELATCH 1 TOP
7080549
9999999
Not Available
5
TWISTLOCK RELATCH 1 IN W/HOLE
7080548
9999999
Not Available
6
RIVET(10)
7621337
9999999
Not Available
7
TAILLIGHT BULB
4030024
9999999
Not Available
8
BULB
4030045
9999999
Not Available
9
LENS TAILLIGHT
5430423
9999999
Not Available
10
SCREW
7511840
9999999
Not Available
11
TAILLIGHT HOUSING
5433341
9999999
Not Available
12
RETAINER-CLIP TOOL POUCH
5243185
9999999
Not Available
13
WASHER (10)
7555727
9999999
Not Available
14
RIVET POP 5/32 (50)
7621319
$2,09 Unit Price incl. VAT
15
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
16
SCREW
7515159
$9,44 Unit Price incl. VAT
17
TAILLIGHT HARNESS
2460399
9999999
Not Available
18
NUT-SEAT
5631194
$7,34 Unit Price incl. VAT
19
RIVET
7621472
$2,09 Unit Price incl. VAT
20
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
21
FLAT WASHER
7555960
$7,34 Unit Price incl. VAT
22
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
23
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
24
SEAL FOAM
5810947
$8,39 Unit Price incl. VAT
25
LINE; FUEL;600CM;SVC
8350018600
Not Available
26
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
27
FITTING 1/4 90 DEX
7052259
9999999
Not Available
28
GROMMET
7052028
$11,54 Unit Price incl. VAT
29
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
30
FUEL LINE-ESTER
8350019600
Not Available
31
FUEL PICKUP WITH FILTER; 105 MICRON
7052301
$26,24 Unit Price incl. VAT
32
ASM-FUEL TANK;EDGE
2520266
9999999
Not Available
33
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
34
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
35
CABLE TIE-RELEASABLE;5 1/2
7080804
$6,29 Unit Price incl. VAT

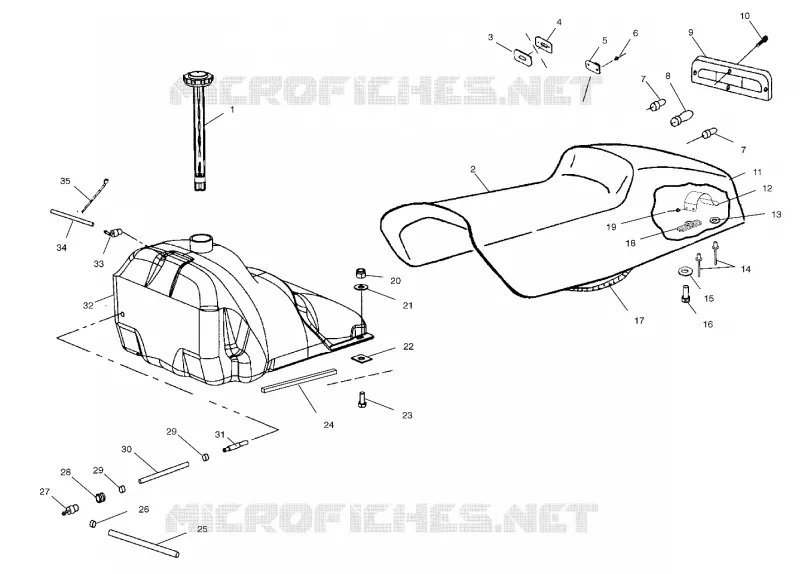

Find the detailed SEAT GAS TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
