1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
PISTON CRANKSHAFT
CRANKCASE
1
CLAMP HOSE SS
7080681
$17,84 Unit Price incl. VAT
2
CHECK VALVE; 90 DEG
7051020
$68,24 Unit Price incl. VAT
3
CLAMP
7080603
$3,14 Unit Price incl. VAT
4
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
5
STUD CYL 81MM
5132196
9999999
Not Available
6
STUD CYL 118MM
5132197
9999999
Not Available
7
TUBING-CONVOLUTED 25CM
836005625
Not Available
8
KIT-CRANKCASE 1202176
2201931
9999999
Not Available
9
PLUG
7051529
9999999
Not Available
10
BOLT 8 MM X 1.25 MM X 55 MM
7517785
$17,84 Unit Price incl. VAT
11
BOLT 8 MM X 1.25 MM X 80 MM
7517784
$15,74 Unit Price incl. VAT
12
SCREW
7516825
$10,49 Unit Price incl. VAT
13
BOLT M8X1.25X45
7517786
$11,54 Unit Price incl. VAT
14
SCREW
7517577
$7,34 Unit Price incl. VAT
15
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
16
FITTING
7052145
$17,84 Unit Price incl. VAT
17
BRNG PUMP SHAFT [No Longer Available]
5010390
Not Available
18
FLANGED SEAL
5411394
5415026
$41,99 Unit Price incl. VAT
19
VALVE REED ASSEMBLY
1201825
9999999
Not Available
20
REED STUFFER 75.5 MM
5432852
9999999
Not Available
21
ADAPTER CARB TM/RACK 440 BASE
1253217
9999999
Not Available
22
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT

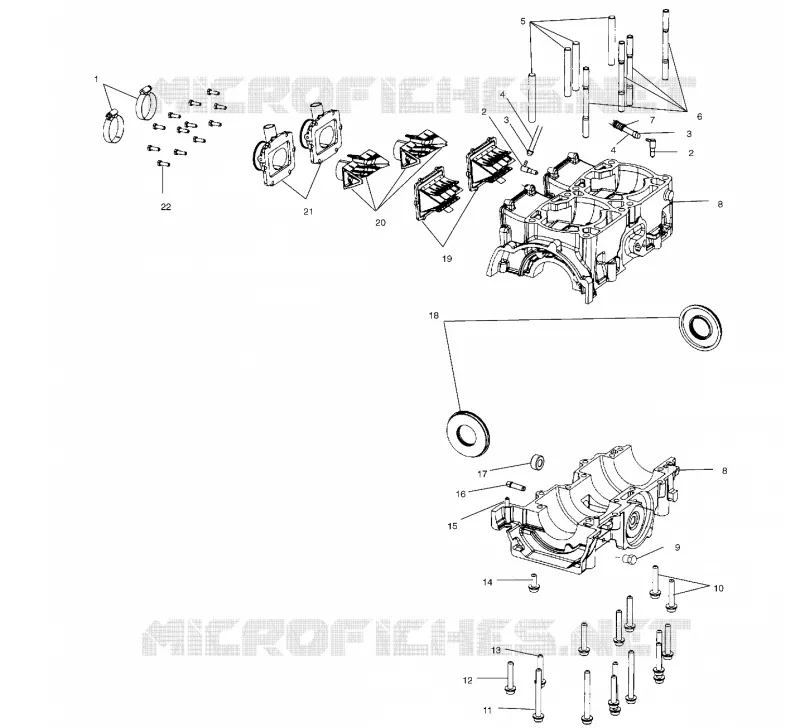

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
