Engine displacement
autre
2
Year
1988
3
Trim
SWE LTR - S881549
4
Parts Catalog
BRAKE CHAINCASE LTR (4914141414019A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH LTR/STARTRAK (4914141414018A)
by
BRAKE CHAINCASE STARTRAK (4914141414021A)
BRAKE CHAINCASE LTR (4914141414019A)
1
COUPLER SHAFT (O/P)
5020449
9999999
Not Available
2
OIL SEAL
3610015
9999999
Not Available
3
BEARING
3514303
$20,99 Unit Price incl. VAT
4
SHAFT; OUTPUT
5020450
6230065
Not Available
5
SPACER OUTPUT SHAFT
5010227
Not Available
6
SPROCKET 39 T11W
3222034
9999999
Not Available
7
SPROCKET-41T 11W
3222037
9999999
Not Available
8
SPACER;OUTPUT
5020480
9999999
Not Available
9
BALL BEARING
3514001
$34,64 Unit Price incl. VAT
10
BEARING; 205 WITHOUT SEAL
3514304
$27,29 Unit Price incl. VAT
11
RING RET.
7710411
9999999
Not Available
12
WASHER
7555751
9999999
Not Available
13
BEARING NEEDLE
3554503
Not Available
14
GEAR FORWARD 21T (21T)
5130661
Not Available
15
SHAFT INPUT
5020508
Not Available
16
PINION REVERSE
5130667
9999999
Not Available
17
FORK SHIFT
5130662
9999999
Not Available
18
SHAFT; SHIFT
5130669
5130802
Not Available
19
O-RING
5410440
9999999
Not Available
20
RETAINER RECOIL Substituted by 1011593-067 (600 600 LE)
1011593
Not Available
21
WASHER
7552604
$3,14 Unit Price incl. VAT
22
BOLT
7512247
9999999
Not Available
23
SCREW; SET
7515473
9999999
Not Available
24
SPRING SHIFTER DETENT
7041187
9999999
Not Available
25
BALL DETENT (10)
7080310
$10,49 Unit Price incl. VAT
26
SHAFT LOW RANGE
5020481
Not Available
27
GEAR 24T
5130607
9999999
Not Available
28
SPACER REV.SHAFT
5010225
Not Available
29
GEAR 30T [No Longer Available]
5130608
Not Available
30
BUSHING WASHER(10) Substituted by 5010260
7555765
Not Available
31
SHAFT REVERSE
5020446
Not Available
32
SPKT 18T
3221042
9999999
Not Available
33
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
34
SPACERSHAFTREV.
5010226
5010261
Not Available
35
BOLT
7515474
9999999
Not Available
36
WEIGHT; KEY
7721112
9999999
Not Available
37
SCREW
7512470
9999999
Not Available
38
NUT
7542404
$3,14 Unit Price incl. VAT
39
SCREW
7512225
9999999
Not Available
40
PLUG; PIPE
7051513
9999999
Not Available
41
PLUG; PIPE
7051511
9999999
Not Available
42
PIN; DOWEL
7661904
9999999
Not Available
43
SCREW
7512252
9999999
Not Available
44
PLATE; VENT
5211036
9999999
Not Available
45
GASKET VENT
5810305
9999999
Not Available
46
BOLT
7512240
9999999
Not Available
47
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
48
BLOCK TIGHTENER
5630122
9999999
Not Available
49
PIN; DOWEL(10)
7662208
9999999
Not Available
50
DISC BRAKE WELD.
1910027
9999999
Not Available
51
PIN-SPIRAL
7661504
9999999
Not Available
52
GEARCASE LH MACH.
5130660
Not Available
53
GEARCASE;RH MACH.
5130629
5130755
Not Available
54
BOLT
7512329
$7,34 Unit Price incl. VAT
56
BUSHING
5010217
Not Available
57
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
58
WHEEL C/C IDLER
5630123
9999999
Not Available
59
BEARING
3553002
9999999
Not Available
60
PIN; DOWEL
7661819
9999999
Not Available
61
PIN; SPRING
7661206
9999999
Not Available
62
PLUG PIPE MAGNETIC
7051512
Not Available
63
CHAIN 66 PITCH
3224024
9999999
Not Available
64
CHAIN SILENT
3224037
Not Available
65
CABLE BRAKE [No Longer Available]
7080362
Not Available
66
BOLT
7515478
9999999
Not Available
67
BRACKET
1910024
9999999
Not Available
68
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
69
BRACKET
5220514
5220514-067
Not Available
70
BUSHING
1930559
9999999
Not Available
71
NUT
7542425
9999999
Not Available
72
CALIPER
5630305
9999999
Not Available
73
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
74
PIN; CLEVIS
7080316
9999999
Not Available
75
SCREW
7512116
9999999
Not Available
76
BUSHING
5332795
9999999
Not Available
77
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
78
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
79
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
80
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
81
CALIPER
1930593
9999999
Not Available
82
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
83
PAD BRAKE (THICK)
1930588
9999999
Not Available
84
PUCK
1930592
9999999
Not Available
85
LEVER ASM;BRAKE
2050039
9999999
Not Available
85
SPRING BRAKE RETURN
7041147
9999999
Not Available
85
CABLE; BRAKE
7080349
9999999
Not Available

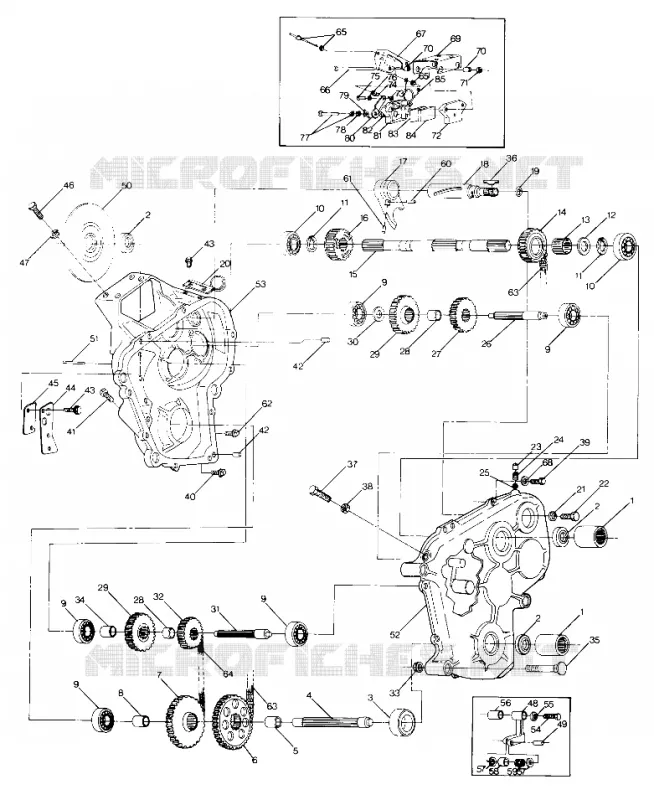

Find the detailed BRAKE CHAINCASE LTR (4914141414019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
