1
Engine displacement
autre
2
Year
1988
3
Trim
SWE LTR - S881549
4
Parts Catalog
PISTON AND CRANKSHAFT LTR (4914141414036A)
5
Parts Diagram
Parts Catalog
CYLINDER LTR (4914141414035A)
by
OIL PUMP STARTRAK (4914141414041A)
PISTON AND CRANKSHAFT LTR (4914141414036A)
1
CRANKSHAFT (Incl. 2-11 20)
3083887
Not Available
2
CRANKSHAFT #1
3083280
9999999
Not Available
3
CRANKSHAFT #2 (Incl. 6)
3083890
Not Available
4
CRANKSHAFT #3
3083278
Not Available
5
CONNECTING ROD
3083252
9999999
Not Available
6
PIN; CRANK
3083233
9999999
Not Available
7
CRANKPIN SPACER
3083277
9999999
Not Available
8
BEARING LGE.END
3083276
9999999
Not Available
9
SPACER CRANKSHAFT
3080447
9999999
Not Available
10
BEARING BALL
3083888
9999999
Not Available
11
BEARING BALL
3083889
Not Available
12
PISTON
3083880
Not Available
12
PISTON .020 O/S (.020) (Incl. 15)
3083895
Not Available
13
PISTON PIN
3083858
9999999
Not Available
14
RING PISTON (2)
3082822
9999999
Not Available
15
PISTON PIN CLIP
3083839
9999999
Not Available
16
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
17
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
18
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
19
KEY
3081447
9999999
Not Available
20
GEAR DRIVE OIL PUMP
3083782
9999999
Not Available

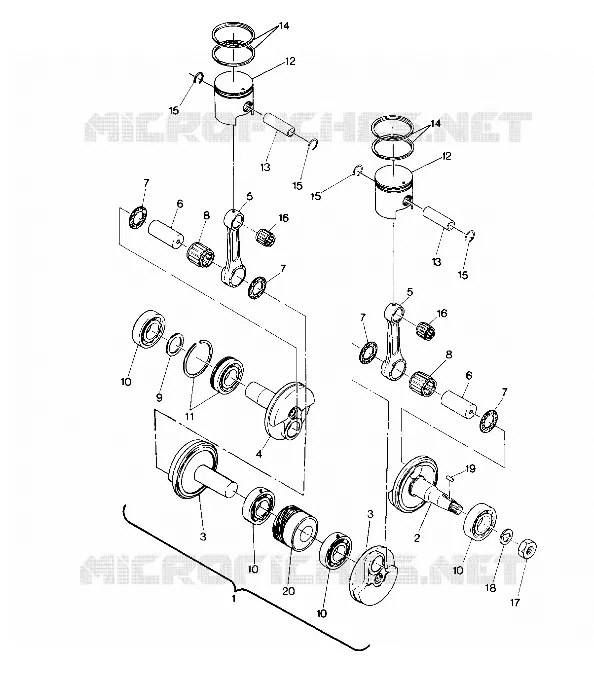

Find the detailed PISTON AND CRANKSHAFT LTR (4914141414036A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
