Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 EPS ZUG
4
Parts Catalog
CRANKCASE -A16SES57F1/F2/SBT57F1
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
LONG BLOCK
CRANKCASE -A16SES57F1/F2/SBT57F1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
1
CRANKCASE KIT
2205169
2206361
$1 837,49 Unit Price incl. VAT
2
BALL BEARING; 30 X 62 X 16
3514426
$34,64 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
PIN-DOWEL M6X10
5137611
5132835
$4,19 Unit Price incl. VAT
5
BEARING RETAINER PLATE
5256915
$47,24 Unit Price incl. VAT
6
BEARING SPACER
5137838
$73,49 Unit Price incl. VAT
7
SCR-M8X1.25X50
7520105
$9,44 Unit Price incl. VAT
8
SCREW
7517598
$19,94 Unit Price incl. VAT
9
SCREW
7519297
$7,34 Unit Price incl. VAT
10
RING-SNAP 80X2.5
7710660
$7,34 Unit Price incl. VAT
11
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
12
SCREW 8 MM X 1.25 MM X 90 MM
7520104
$10,49 Unit Price incl. VAT
13
CRANKSHAFT SEAL
3610171
$89,24 Unit Price incl. VAT
14
BALL BEARING; 40 X 80 X 18
3514389
3515831
$55,43 Unit Price incl. VAT
15
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
16
OIL PAN MACHINED
5138327
5143696
$188,99 Unit Price incl. VAT
17
OIL PAN GASKET
5414626
$20,99 Unit Price incl. VAT
18
RING-RTNG DHO-62
7710681
$13,64 Unit Price incl. VAT

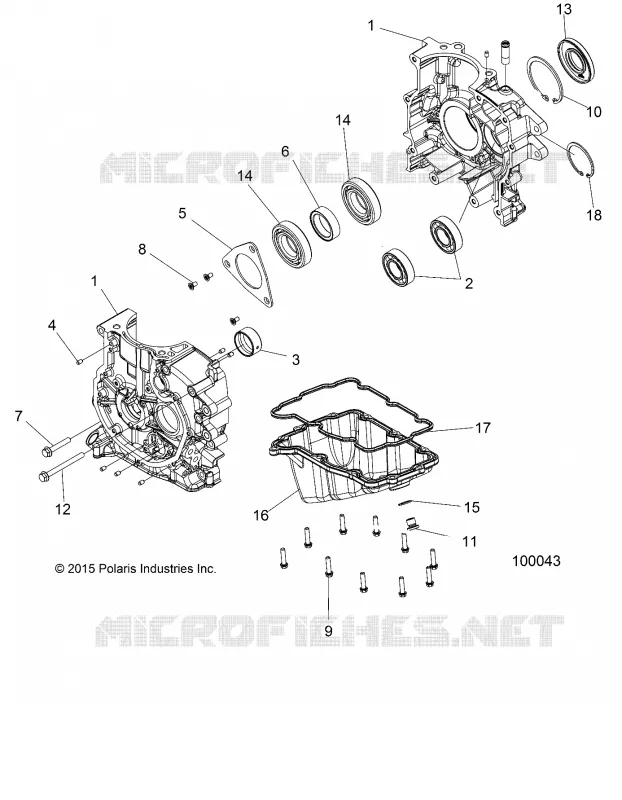

Find the detailed CRANKCASE -A16SES57F1/F2/SBT57F1 POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
