Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 EPS ZUG
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
ENGINE, MOUNTING
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
17
8
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
1
PRESSURE CAP
1240508
$89,24 Unit Price incl. VAT
2
RADIATOR ASSEMBLY; 324 X 300
1240520
1241477
$834,74 Unit Price incl. VAT
3
GROMMET AND INSERT ASSEMBLY
5413155
$7,34 Unit Price incl. VAT
4
ENGINE HOSE; LOWER
5414805
$73,49 Unit Price incl. VAT
5
FORMED BYPASS HOSE; 3/8 IN
5414806
$68,24 Unit Price incl. VAT
6
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
7
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
8
CLAMP-HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
9
FAN AND MOTOR ASSEMBLY
2411330
$303,96 Unit Price incl. VAT
10
SPACER-6.6IDX19ODX15 NYL BLK
5137361
$10,49 Unit Price incl. VAT
11
FILLER NECK
5412402
$52,49 Unit Price incl. VAT
12
FILLER NECK HOSE
5414228
$29,39 Unit Price incl. VAT
13
RADIATOR HOSE UPPER
5414762
5417381
$104,99 Unit Price incl. VAT
14
RADIATOR HOSE; LOWER
5414765
$83,99 Unit Price incl. VAT
15
CONDUIT-FLEX 1.00 ID PE 25CM
552179325
Not Available
16
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
17
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
18
SCREW
7516827
$12,59 Unit Price incl. VAT
19
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
20
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
21
FUEL LINE; 1/4 ID
84500031525
Not Available
22
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
23
SPRING-COOLANT HOSE GUIDE
5338063
5342957
$12,59 Unit Price incl. VAT
24
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
25
OVERFLOW BOTTLE WITH FITTING CAP
5437635
$9,44 Unit Price incl. VAT
26
GASKET
5810279
$4,19 Unit Price incl. VAT
27
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
28
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
29
SCREW
7512084
$2,09 Unit Price incl. VAT
30
SCREW
7515179
$4,19 Unit Price incl. VAT
31
SCREW
7517386
$2,09 Unit Price incl. VAT
32
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT

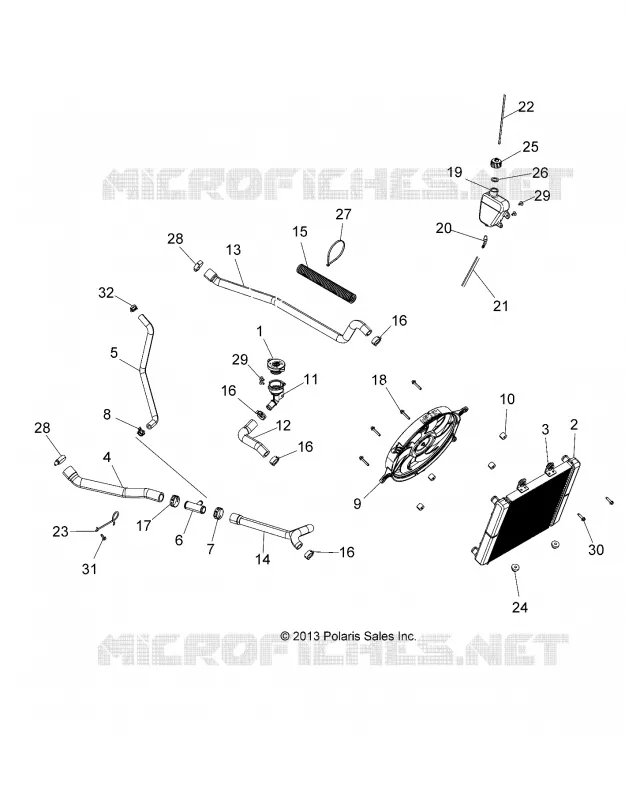

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
