1
Engine displacement
800
2
Year
2020
3
Trim
800 SKS 146
4
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
SEAT
by
WATER PUMP
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
CLIP-HARNESS 3-13MM INTERLCK
7081871
$7,34 Unit Price incl. VAT
2
CABLE TIE
7080356
$4,19 Unit Price incl. VAT
3
FUEL LINE ASSEMBLY; RETURN; PFA; PROG
2521345
$157,49 Unit Price incl. VAT
4
ASM-FUEL LINE SUPPLY PFA PROG
2521344
9999999
Not Available
5
INJECTOR HARNESS W/ LEAD
4014715
$488,24 Unit Price incl. VAT
6
HEX FLANGE SCREW; 6 MM X 1.0 MM X 60 MM
7519244
$3,14 Unit Price incl. VAT
7
O-RING-BOSCH EV-14 UPPER
1500198
$20,25 Unit Price incl. VAT
8
BOSCH O-RING
5412891
$2,09 Unit Price incl. VAT
9
INJECTOR ELASTOMER RUBBER BUSHING
5436287
$6,29 Unit Price incl. VAT
10
THROTTLE BODY ASSEMBLY; 48 MM
1205241
$902,99 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
ASM-FUEL RAIL;AS
2522185
$824,24 Unit Price incl. VAT
13
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
14
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT

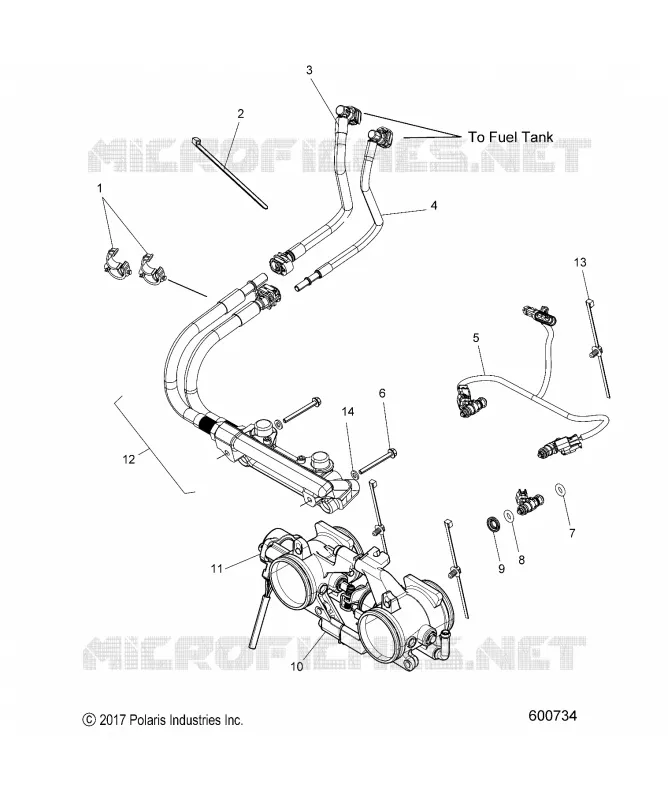

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
