ENGINE, MOUNTING for POLARIS 800 SKS 146 from 2020

ENGINE, MOUNTING

-

LONG BLOCK KIT; 800

2208213

$9 922,49 Unit Price incl. VAT

1

SOCKET HEAD SCREW 10 MM X 1.5 MM X 50 MM

7519334

$9,44 Unit Price incl. VAT

2

ENGINE MOUNT INSERT RAD MAG

3023291

$52,49 Unit Price incl. VAT

3

ENGINE MOUNT; REAR; MAG; MACHINED

5138294

$89,24 Unit Price incl. VAT

4

ENGINE MOUNT

3023293

$73,49 Unit Price incl. VAT

5

SCREW

7516823

$5,76 Unit Price incl. VAT

6

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$7,34 Unit Price incl. VAT

7

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

8

TORQUE ASSEMBLY; LINK; FIXED

1019180

$104,99 Unit Price incl. VAT

9

FLANGE JACKSHAFT BEARING ASSEMBLY

1020378

$27,29 Unit Price incl. VAT

10

SCR-TXTH-M8X1.25X15 8.8 ZODP30

7520311

$6,29 Unit Price incl. VAT

11

SCR-HXBH-M8X1.25X20 TX W/PATCH

7519648

$7,34 Unit Price incl. VAT

12

SCR-SH-M10X1.5X25 ZOD

7519119

$6,29 Unit Price incl. VAT

13

TORQUE ENGINE LIMITER

3022281

$89,24 Unit Price incl. VAT

14

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

15

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$13,64 Unit Price incl. VAT

16

MOUNT-ENGINE PTO FRONT

3023292

$83,99 Unit Price incl. VAT

17

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

18

ENGINE BASE MOUNT; FRONT; MACHINED

5139042

$83,99 Unit Price incl. VAT

19

WASHER-.315/.325X.88X.075 FL-Y

7556216

$9,44 Unit Price incl. VAT

20

600-800 SNOW ENGINE MOUNT

3023290

$52,49 Unit Price incl. VAT

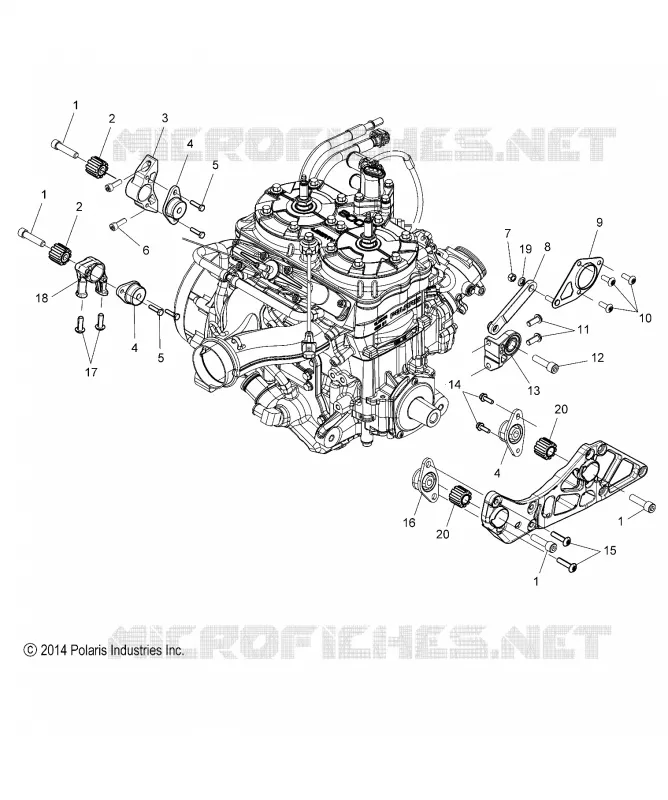

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
