1
Engine displacement
1050
2
Year
1997
3
Trim
SLTX - B974590
4
Parts Catalog
PROPULSION SLTX B974590 AND INTL. SLTX I974590 (4941214121B003)
5
Parts Diagram
Parts Catalog
DRIVE SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B002)
by
EXHAUST SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B004)
PROPULSION SLTX B974590 AND INTL. SLTX I974590 (4941214121B003)
1
BEARING
3514008
9999999
Not Available
2
O-RING(10)
5410817
9999999
Not Available
3
O-RING(10)
5410818
9999999
Not Available
4
SHAFT; STUB
5020697
9999999
Not Available
5
O-RING(10)
5410819
9999999
Not Available
6
CONE PUMP
5431519
9999999
Not Available
7
SCREEN ENG.INLET
5431523
9999999
Not Available
8
SCREW
7512064
9999999
Not Available
9
WEDGE PUMP (0DEGX4DEG)
5630662
9999999
Not Available
10
NOZZLE STAT. 0X4 WEDGE
5131569
9999999
Not Available
11
BOLT
7515389
9999999
Not Available
12
WASHER FLAT S.S.(10)
7555835
9999999
Not Available
13
WASHER LOCK S.S.
7552610
9999999
Not Available
14
BOLT S.S.
7515366
9999999
Not Available
15
COLLAR
5130938
9999999
Not Available
16
NOZZLE STEERING
5130999
9999999
Not Available
17
BRG STRG.NOZZLE
5431518
9999999
Not Available
18
PIPE WATER ENG. RESTRICTED
5131545
9999999
Not Available
19
O RING;(10)
5410735
9999999
Not Available
20
STATOR PUMP HI-PERF.
5131726
9999999
Not Available
21
SPACER
5010294
9999999
Not Available
22
SEAL BRG STATOR
3610043
9999999
Not Available
23
SPACER IMPELLER
5010295
9999999
Not Available
24
IMPELLER 17-25 3BLADE SS
5131554
Not Available
25
EXTENSION PUMP
5131196
9999999
Not Available
26
SCREW(10)
7522019
9999999
Not Available
27
ANODE-ZINC
5630598
9999999
Not Available
28
STUD PUMP MTG.
5020842
9999999
Not Available
29
WASHER
7555966
$4,15 Unit Price incl. VAT
30
NUT HEX S.S.(10)
7542455
9999999
Not Available
31
BRKT;STRG.CABLE
5241741
9999999
Not Available
32
WASHER PUMPSTUD SEAL
7555941
9999999
Not Available
33
SEAL WATER PIPE
5411107
9999999
Not Available
34
HSG PUMP W/O RING INT STUD
5131573
9999999
Not Available

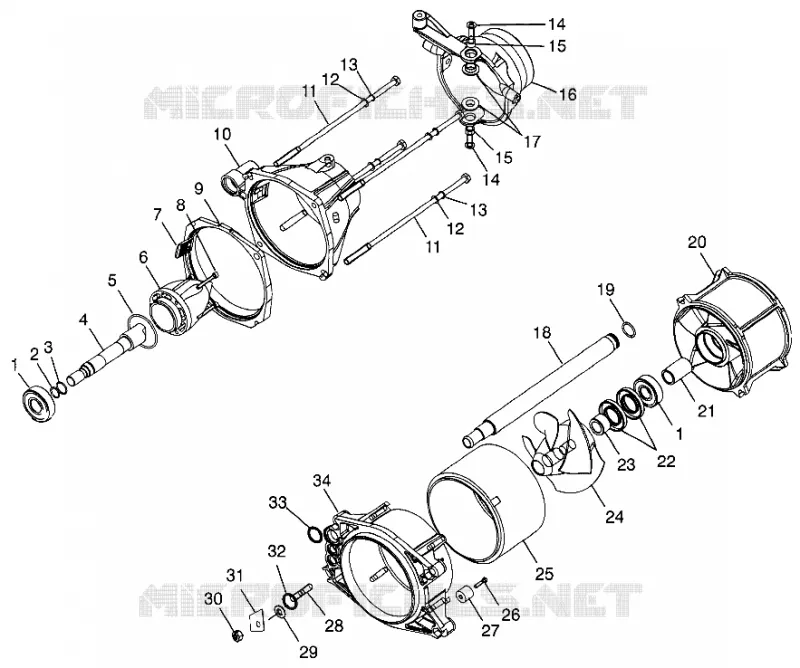

Find the detailed PROPULSION SLTX B974590 AND INTL. SLTX I974590 (4941214121B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
