FUEL SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121A011) for POLARIS SLTX - B974590 from 1997

SEAT SLTX B974590 AND INTL. SLTX I974590 (4941214121A010)

DRIVE SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B002)

FUEL SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121A011)

1

SCREW S.S.(10)

7516302

9999999

Not Available

2

WASHER; FLAT; S.S.

7555840

9999999

Not Available

3

KNOB FUEL VALVE BLK

5432626070

Not Available

4

NUT; FUEL VALVE

5431451

9999999

Not Available

5

ON/OFF VALVE

7052159

$89,24 Unit Price incl. VAT

6

CLAMP HOSE S.S.

7080476

$11,54 Unit Price incl. VAT

7

FUEL LINE1/4 ID(1525 CM.)

84500461525

Not Available

8

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

9

FITTING TEE

7052111

9999999

Not Available

10

VALVE CHECK RELIEF

7051015

9999999

Not Available

11

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

12

GROMMET VENT

5410682

9999999

Not Available

13

VALVEVACUUM CHECK

7052118

9999999

Not Available

14

CABLE TIE4 INCH

7080483

9999999

Not Available

15

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

16

T-CLIP

7080482

9999999

Not Available

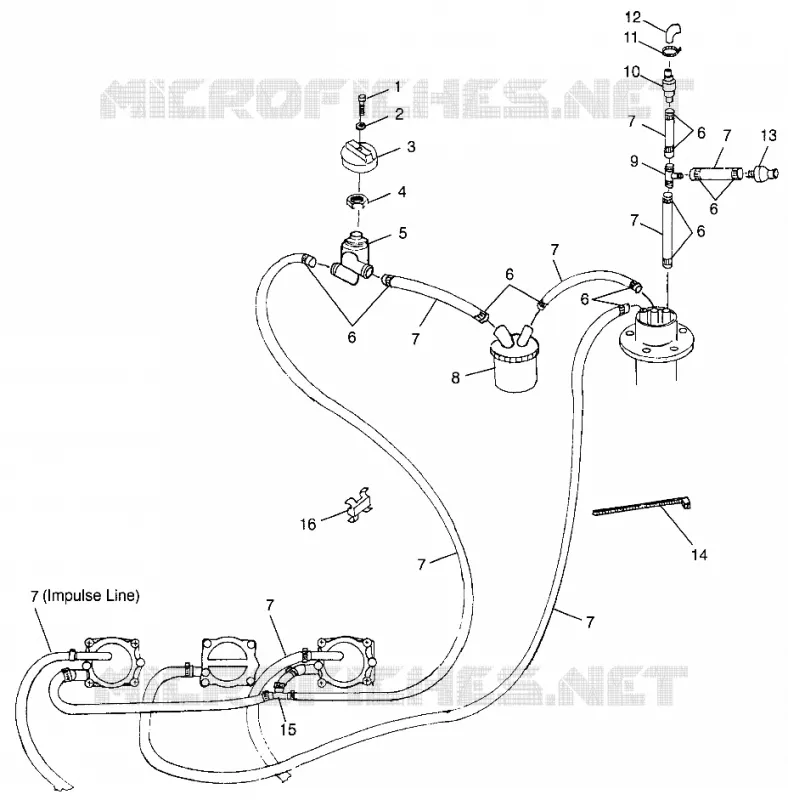

Find the detailed FUEL SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SLTX - B974590

FRONT STORAGE COMPARTMENT SLTX B974590 AND INTL. SLTX I974590 (4941214121A008)

FUEL TANK SLTX B974590 AND INTL. SLTX I974590 (4941214121A009)

SEAT SLTX B974590 AND INTL. SLTX I974590 (4941214121A010)

FUEL SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121A011)

DRIVE SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B002)

PROPULSION SLTX B974590 AND INTL. SLTX I974590 (4941214121B003)

EXHAUST SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B004)

BATTERY BOX SLTX B974590 AND INTL. SLTX I974590 (4941214121B005)

REVERSE SLTX B974590 AND INTL. SLTX I974590 (4941214121B010)

BILGE PUMP SLTX B974590 AND INTL. SLTX I974590 (4941214121B011)

TOOL KIT SLTX B974590 AND INTL. SLTX I974590 (4941214121B012)

CRANKCASE SLTX B974590 AND INTL. SLTX I974590 (4941214121B013)

CYLINDER MANIFOLD SLTX B974590 AND INTL. SLTX I974590 (4941214121B014)

STARTING MOTOR SLTX B974590 AND INTL. SLTX I974590 (4941214121C006)

FUEL / WATER SEPARATOR SLTX B974590 AND INTL. SLTX I974590 (4941214121C007)

HULL BODY SLTX B974590 and INTL. SLTX I974590 (4941214121A005)

HULL BODY SLTX B974590 and INTL. SLTX I974590 (4941214121A006)

DECALS SLTX B974590 AND INTL. SLTX I974590 (4941214121A007)

OIL TANK SLTX B974590 AND INTL. SLTX I974590 (4941214121A012)

STEERING SLTX B974590 AND INTL. SLTX I974590 (4941214121A013)

STEERING SLTX B974590 AND INTL. SLTX I974590 (4941214121A014)

ENGINE MOUNTING SLTX B974590 AND INTL. SLTX I974590 (4941214121B001)

COOLING SYSTEM SLTX B974590 AND INTL. SLTX I974590 (4941214121B006)

AIR INTAKE SLTX B974590 AND INTL. SLTX I974590 (4941214121B007)

WATER INLET SLTX B974590 AND INTL. SLTX I974590 (4941214121B008)

ELECTRICAL BOX SLTX B974590 AND INTL. SLTX I974590 (4941214121B009)

CARBURETOR SLTX B974590 AND INTL. SLTX I974590 (4941214121C001)

CRANKSHAFT PISTON SLTX B974590 AND INTL. SLTX I974590 (4941214121C003)

OIL PUMP SLTX B974590 AND INTL. SLTX I974590 (4941214121C004)

MAGNETO SLTX B974590 AND INTL. SLTX I974590 (4941214121C005)

POLARIS SLTX - B974590 1997

SLTX - B974590

Model : SLTX

Engine capacity : 1050

Year : 1997
