SEAT AND BASE for POLARIS RANGER CREW 1000 DIESEL MD from 2017

BODY, CLUTCH COVER AND DUCTING

BRAKES, BRAKE LINES AND MASTER CYLINDER

SEAT AND BASE

1

SEAT ASSEMBLY; BOTTOM; GLOSS BLACK

2687901070

Not Available

1

BOTTOM SEAT ASSEMBLY; GLOSS BLACK

2684965070

Not Available

2

SEAT HINGE BRACKET

5259064

5274712

$16,79 Unit Price incl. VAT

3

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

4

SEAT LATCH PIN

5910404

$41,99 Unit Price incl. VAT

5

SEAT BOTTOM ASSEMBLY; GLOSS BLACK

2684966070

Not Available

5

SEAT BOTTOM; GLOSS BLACK

2687934070

Not Available

6

DOUBLE SEAT HINGE BRACKET

5259065

$19,94 Unit Price incl. VAT

7

3 PASSENGER BOTTOM SEAT ASM GLOSS BLACK

2688002070

Not Available

7

SEAT BOTTOM BASE 3 PASS; GLOSS BLACK

2685651070

Not Available

8

SEAT HINGE BRACKET

5256836

$19,94 Unit Price incl. VAT

9

SEAT BACK; GLOSS BLACK

2687899070

Not Available

9

SEAT BACK; GLOSS BLACK

2685653070

Not Available

10

STRAP-SEAT CENTER

2686158

$26,24 Unit Price incl. VAT

11

WASHER

7555798

$1,56 Unit Price incl. VAT

12

GROMMET

5439179

$12,59 Unit Price incl. VAT

13

SEAT BELT ASSEMBLY CENTER 3 POINT

2635052

2638784

$330,74 Unit Price incl. VAT

14

SEAT BELT ASSEMBLY

2635118

2638785

$467,24 Unit Price incl. VAT

15

DRIVER SEATBELT BUCKLE; 9.6

2635223

$115,49 Unit Price incl. VAT

16

PASSENGER SEATBELT BUCKLE;

2635235

$125,99 Unit Price incl. VAT

17

COVER-SEAT BELT MOUNT

5415020

$62,99 Unit Price incl. VAT

18

BOLT HEAD CAP

5450708

9999999

Not Available

19

SEATBELT WASHER; RUBBER

5813829

$2,09 Unit Price incl. VAT

20

SEAT BASE PAD; REAR

5814036

$29,39 Unit Price incl. VAT

21

HEX FLANGE SCREW 12MM X 1.75MM 14MM X9MM

7519770

$8,39 Unit Price incl. VAT

22

NUT NYLOK 12 MMX 1.5 MM

7540000

$7,34 Unit Price incl. VAT

23

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

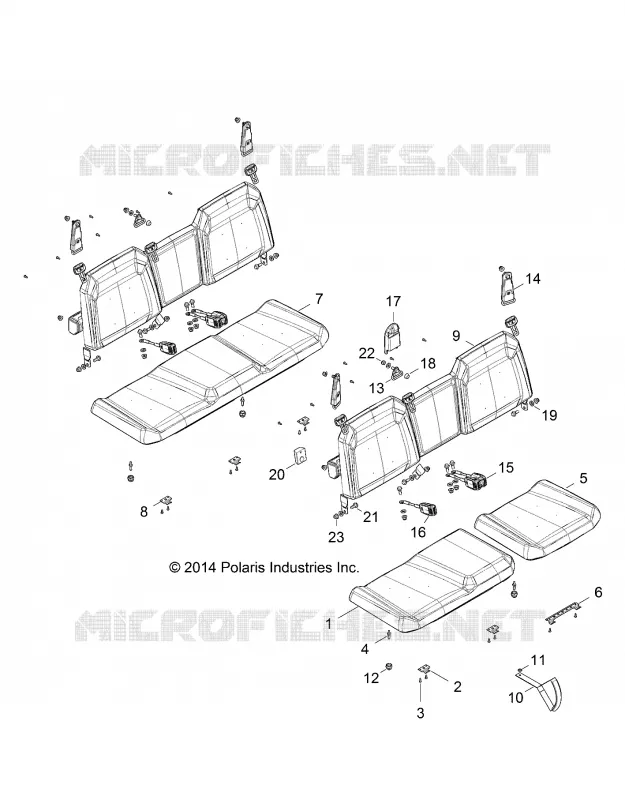

Find the detailed SEAT AND BASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
