ENGINE, TIMING PULLEY, TIMING BELT, JOCKEY PULLEY for POLARIS RANGER CREW 1000 DIESEL MD from 2017

ENGINE, MOUNTING

TIMING SYSTEM GUARD

ENGINE, TIMING PULLEY, TIMING BELT, JOCKEY PULLEY

1

SCREW

3040229

9999999

Not Available

2

WASHER 11X33X5

3040147

9999999

Not Available

3

NUT M10X1.5

3040056

$9,44 Unit Price incl. VAT

4

WASHER 10.5X32X4

3040142

$14,69 Unit Price incl. VAT

5

STUD M10X70

3040134

$20,99 Unit Price incl. VAT

6

BELT TENSIONER

3040069

$719,24 Unit Price incl. VAT

7

TIMING BELT

3040043

$243,59 Unit Price incl. VAT

8

TIMING DRIVING PULLEY

3040136

$167,99 Unit Price incl. VAT

9

TIMING DRIVEN PULLEY

3040138

$230,99 Unit Price incl. VAT

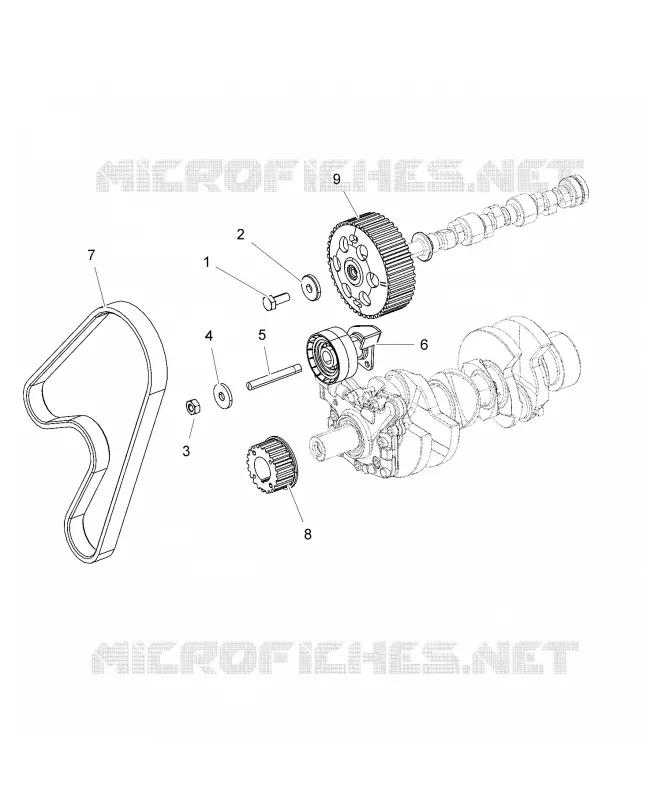

Find the detailed ENGINE, TIMING PULLEY, TIMING BELT, JOCKEY PULLEY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
