1
Engine displacement
500
2
Year
1991
3
Trim
500 CLASSIC - 0910865
4
Parts Catalog
BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615
5
Parts Diagram
Parts Catalog
CARBURETOR-ECSOPL-04,-05 500 AND 500 CLASSIC (4919251925035A)
by
CHASSIS AND SEAT 500 AND 500 CLASSIC (4919251925001A)
BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615
1
CASTING-CARRIER
1930570
Not Available
2
NUT
1930558
Not Available
3
BUSHING
1930559
9999999
Not Available
4
BRACKET (Sport Trail 400)
1930560
Not Available
5
BOLT-BRIDGE
1930561
Not Available
6
BRAKE PAD; INDIVIDUAL
1930569
9999999
Not Available
7
LINE BRAKE
1930692
9999999
Not Available
8
CONNECTOR
5020371
9999999
Not Available
9
ELBOW
7052058
9999999
Not Available
10
PISTON
1930568
Not Available
11
SEAL-PISTON
1930567
9999999
Not Available
12
CALIPER ASM BRAKE Substituted by 1930556
1930566
Not Available
13
SWITCH-STOPLIGHT
4110046
9999999
Not Available
14
SCREW-BLEEDER
1930564
Not Available
15
PIN PAD RETAINING
1930563
Not Available
16
CLIP-SPRING
1930562
Not Available
17
BUSHING
7556509
$3,14 Unit Price incl. VAT
18
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
19
SHAFT; DRIVE
5130799
9999999
Not Available
20
CASTING-CARRIER
1930570
Not Available
21
SPACER
5210999
Not Available
22
WASHER
7555725
9999999
Not Available
23
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
24
SPROCKET 9T
5430571
9999999
Not Available
25
BEARING 1 IN.(GREASEABLE)
3514511
Not Available
26
DRIVESHAFT ASM. Substituted by 1590249 (Incl. 25-27)
1590224
Not Available
27
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
28
BOLT
7515301
9999999
Not Available
29
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
30
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
31
SPACER
5020291
9999999
Not Available
32
CLUTCH DRIVEN
1322141
Not Available
33
DRIVE BELT
3211054
9999999
Not Available
34
SCREW; CARRIAGE
7515477
9999999
Not Available
35
FLANGETTE W/GREASE GROOVE
5222581
9999999
Not Available
36
BEARING
3514501
9999999
Not Available
37
FLANGETTE
5222591
9999999
Not Available
38
Desc not available [No Longer Available]
7558401
Not Available
39
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
40
KEY (10)
7727003
9999999
Not Available
41
SHAFT; INPUT
5130787
1332135-067
Not Available
42
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
43
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
44
DISC BRAKE ASM
1332091
9999999
Not Available
44
DISC BRAKE ASM
1910064
9999999
Not Available
45
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
46
O-RING
5410613
$3,66 Unit Price incl. VAT
47
COVER CHAINCASE
5222579
Not Available
48
BOLT
7512246
9999999
Not Available
49
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
50
SCREW
7511909
9999999
Not Available
51
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
52
NUT-WELL
7541918
9999999
Not Available
53
CHAINCASE GASKET
5410277
9999999
Not Available
54
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
55
TIGHTENER ASM.
1332078
9999999
Not Available
56
SPKT; 20T
3221053
9999999
Not Available
56
SPROCKET 21 T
3221035
9999999
Not Available
57
CHAIN 66 PITCH
3224024
9999999
Not Available
58
SPROCKET 39 T11W
3222034
9999999
Not Available
60
SPACER SPROCKET
5010270
9999999
Not Available
61
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
62
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
63
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
64
O RING
5410565
9999999
Not Available
65
STAND-OFF C/C COVER
5333033
Not Available
66
BOLT; S.S.(10)
7512293
9999999
Not Available
67
MAGNETIC DRAIN PLUG
7052045
$26,24 Unit Price incl. VAT
68
BEARING CHAINCASE #6205
3514306
9999999
Not Available
69
CHAINCASE ASSEMBLY
1332124
9999999
Not Available
70
RETAINER RECOIL Substituted by 1011593-067 (600 600 LE)
1011593
Not Available
71
BOLT
7512240
9999999
Not Available
72
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
73
CAP STUD COVER
5020569
9999999
Not Available
74
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
75
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
76
BOLT CARRIAGE
7515428
9999999
Not Available
77
SCREW
7512470
9999999
Not Available
78
NUT
7542404
$3,14 Unit Price incl. VAT
79
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
80
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
81
DRIVE ANGLE
3280016
3280540
$188,99 Unit Price incl. VAT
82
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available

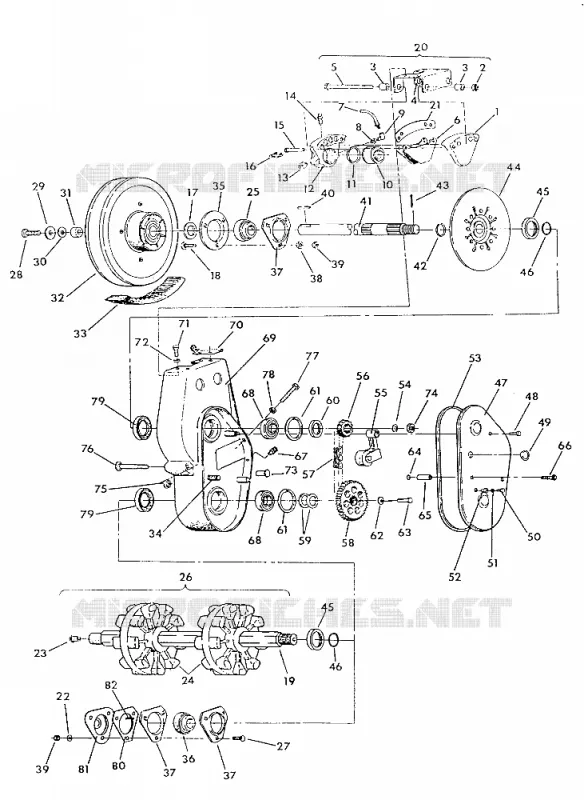

Find the detailed BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615 POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
