1
Engine displacement
500
2
Year
1991
3
Trim
500 CLASSIC - 0910865
4
Parts Catalog

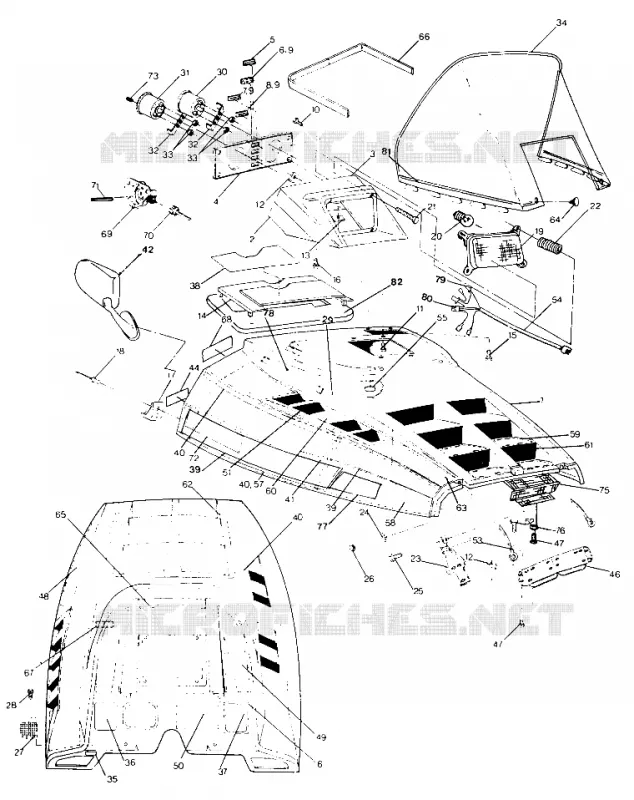

HOOD 500 AND 500 CLASSIC (4919251925003A)
5
Parts Diagram
Parts Catalog
CHASSIS AND SEAT 500 AND 500 CLASSIC (4919251925001A)
by
SUSPENSION 500 AND 500 CLASSIC (4919251925011A)
HOOD 500 AND 500 CLASSIC (4919251925003A)
1
HOOD BLACK(INDY) Substituted by 5431194-070
5431079070
Not Available
1
HOOD CLASSIC/RXL Substituted by 5431194-145
5431079145
Not Available
2
HSG;INST;BOTTOM
5431051
5430922-070
Not Available
2
HSG INST.BOTT.BLK.
5430922070
Not Available
3
HSG INST TOP
5431052
9999999
Not Available
3
HSG INST TOP BLK
5430923070
Not Available
4
BEZEL INST.
5430924
Not Available
5
INDICATOR-TEMP-WARN.
4040011
9999999
Not Available
6
INDICATOR LOW-OIL WARN.
4040012
9999999
Not Available
7
INDICATOR HI-BEAM WARN.
4040013
9999999
Not Available
8
INDICATOR ACC WARN.
4040014
9999999
Not Available
9
PLUG INDIC.HOLE
5430967
9999999
Not Available
10
SCREW SCKT.HD.CAP
7512008
9999999
Not Available
11
SCREW SEMS
7512283
$7,34 Unit Price incl. VAT
12
NUT SPEED
7670056
9999999
Not Available
13
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
14
PANEL AIR INTAKE
5431078145
Not Available
14
PANEL AIR INTAKE Substituted by 5431195-070
5431078070
Not Available
15
SCREW
7511840
9999999
Not Available
16
SCREW
7512009
9999999
Not Available
18
RIVET
7621334
$2,09 Unit Price incl. VAT
19
HEADLIGHT ASM.
4032040
9999999
Not Available
20
HOLDER-CAP
4032004
Not Available
20
BULB; H/L
4030028
9999999
Not Available
20
HEADLIGHT BULB
2870448
$36,74 Unit Price incl. VAT
21
SCREW; ADJ.(10)
4032003
9999999
Not Available
22
SPRING-ADJ
4032002
9999999
Not Available
23
HINGE ASM HD. Substituted by 2635005-067
2635005
Not Available
24
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
25
BOLT-CARRIAGE
7512263
9999999
Not Available
26
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
27
SCREEN; HOOD
5211117
5211117-067
Not Available
28
SCREW
7511858
$7,34 Unit Price incl. VAT
29
DECAL LH HD.SIDE TL.(91SP) [No Longer Available] (500 SP)
7072967
Not Available
29
DECAL;RH;HD.TL.(91-500)
7072985
9999999
Not Available
29
DECAL;LH;HD.TL.(91-500)
7072984
9999999
Not Available
29
DECAL RH HD.SIDE TL.(91SP) [No Longer Available] (500 SP)
7072968
Not Available
30
SPEEDOMETER
3280092
9999999
Not Available
31
TACHOMETER
3280093
9999999
Not Available
32
BRACKET (SPORT)
3280098
Not Available
33
NUT
3280063
Not Available
34
WINDSHIELD Substituted by 5431037
5431069
Not Available
35
LABEL U.S.A.
7073024
9999999
Not Available
36
DECAL OPER.CAUT SILVER [No Longer Available]
7072875
Not Available
36
DECAL OPER.CAUT.ENG. [No Longer Available] (650)
7072492
Not Available
37
DECAL OPER.CAUT.(FR.) [No Longer Available] (650)
7072493
Not Available
37
DECAL OPER.CAUT(FR)SILVER [No Longer Available]
7072877
Not Available
38
DECAL DASH WARNING [No Longer Available]
7072870
Not Available
39
DECAL LH HOOD TOP [No Longer Available] (500 SP)
7073026
Not Available
39
DECAL RH HOOD TOP [No Longer Available] (500 SP)
7073027
Not Available
39
DECAL;RH;HD.TOP(91CLASSIC)
7073041
9999999
Not Available
39
DECAL LH HD.TOP(91-500) [No Longer Available]
7072974
Not Available
39
DECAL;LH;HD.TOP(91CLASSIC)
7073040
9999999
Not Available
39
DECAL RH HD.TOP(91-500) [No Longer Available]
7072975
Not Available
40
DECAL;RH;HD.SIDE(91-500)
7072979
9999999
Not Available
40
DECAL LH HOODSIDE(500SP) [No Longer Available]
7073028
Not Available
40
DECAL RH HOODSIDE(500SP) [No Longer Available]
7073029
Not Available
40
DECAL;LH;HD.SIDE(91-500)
7072978
9999999
Not Available
41
TAPE FOIL FOAM
5810405
9999999
Not Available
42
PR MIRRORS R.VIEW Substituted by 2870938
2870626
Not Available
44
LOGO INDY SPECIAL
5431108
Not Available
46
PLATE RE-INF. (HD.)
5222105
9999999
Not Available
47
SCREW
7511861
9999999
Not Available
48
FOAM HOOD RH
5810375
Not Available
48
FOAM HOOD LH
5810374
Not Available
49
FOAM HOOD CTR
5810376
9999999
Not Available
50
FOAM HOOD
5810389
9999999
Not Available
51
TAPE FOIL
5810395
Not Available
52
SCREW
7511989
9999999
Not Available
53
CABLE HD.RETAINER
7080360
9999999
Not Available
54
HARNESS HEADLIGHT Substituted by 2460349
2460315
Not Available
54
HARNESS HEADLIGHT
2460320
Not Available
55
O RING(HEAVY)
5410387
5410970
$2,09 Unit Price incl. VAT
57
KIT DECAL(CLASSIC#91) [No Longer Available]
2200370
Not Available
57
KIT DECAL(500 #91) (Incl. 35-40 43 45)
2200365
Not Available
57
KIT DECAL (500SP#91) [No Longer Available]
2200367
Not Available
58
TAPE FOIL FOAM
5810407
Not Available
59
TAPE FOIL RH
5810394
Not Available
59
TAPE FOIL LH
5810393
Not Available
60
TAPE FOIL
5810396
Not Available
61
TAPE FOIL
5810397
Not Available
62
TAPE FOIL LOUVER PIPE SIDE
5810404
Not Available
63
TAPE;FOIL;FOAM
5810406
9999999
Not Available
64
CLIP-PLASTIC
7670041
7621509
$2,09 Unit Price incl. VAT
65
DECAL HOOD-H/L POD [No Longer Available]
7072676
Not Available
66
PAD W/S RH BLACK
5810438
9999999
Not Available
66
PADW/SLHBLACK
5810437
9999999
Not Available
67
CLIP WIRING
4020035
9999999
Not Available
68
LOGO E/S SILVER (500 Classic Only)
5431073
Not Available
69
ADAPTER DRIVE
3280095
3280540
$188,99 Unit Price incl. VAT
70
SPEEDO CABLE
3280094
$115,49 Unit Price incl. VAT
71
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
72
LOGO CLASSIC [No Longer Available]
5431254
Not Available
73
KNOB TRIP ODOMETER
3280103
9999999
Not Available
75
SCREEN LH FR.LOUVER [No Longer Available]
5222428
Not Available
75
SCREEN RH FR.LOUVER [No Longer Available]
5222429
Not Available
76
WASHER
7555708
9999999
Not Available
77
DECAL 500 (91) [No Longer Available]
7072986
Not Available
77
DECAL FIVE HUNDRED [No Longer Available]
7073060
Not Available
78
DECAL L/C TWIN [No Longer Available]
7072943
Not Available
79
CONNECTOR TACH.
2200094
Not Available
80
KIT HOUSING 2 CIRCUIT
2200095
Not Available
81
DECAL 2FT BLUE PINSTRIPE (500 Only)
8330167
Not Available
82
DECAL W/S 500CLASSIC [No Longer Available] (500 Classic Only)
8330168
Not Available
82
SEAL INTAKE Substituted by 5810597
5810503
Not Available
82
DECAL LH HOODSIDE(500SP) [No Longer Available]
7073028
Not Available
82
DECAL RH HOODSIDE(500SP) [No Longer Available]
7073029
Not Available

Find the detailed HOOD 500 AND 500 CLASSIC (4919251925003A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for 500 CLASSIC - 0910865

NOSEPAN 500 and 500 Classic (4919251925005A)

NOSEPAN 500 and 500 Classic (4919251925005A)

for 500 CLASSIC - 0910865 from 1991

CONSOLE 500 AND 500 CLASSIC (4919251925006A)

CONSOLE 500 AND 500 CLASSIC (4919251925006A)

for 500 CLASSIC - 0910865 from 1991

FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)

FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)

for 500 CLASSIC - 0910865 from 1991

BRAKE CHAINCASE 500 AND 500 CLASSIC TO SERIAL NUMBER 1808614

BRAKE CHAINCASE 500 AND 500 CLASSIC TO SERIAL NUMBER 1808614

for 500 CLASSIC - 0910865 from 1991

DRIVEN CLUTCH 500 AND 500 CLASSIC (4919251925016A)

DRIVEN CLUTCH 500 AND 500 CLASSIC (4919251925016A)

for 500 CLASSIC - 0910865 from 1991

ELECTRIC START COMPONENTS 500 and 500 Classic (4919251925017A)

ELECTRIC START COMPONENTS 500 and 500 Classic (4919251925017A)

for 500 CLASSIC - 0910865 from 1991

MASTER CYLINDER 500 AND 500 CLASSIC (4919251925018A)

MASTER CYLINDER 500 AND 500 CLASSIC (4919251925018A)

for 500 CLASSIC - 0910865 from 1991

COOLING SYSTEM 500 AND 500 CLASSIC (4919251925019A)

COOLING SYSTEM 500 AND 500 CLASSIC (4919251925019A)

for 500 CLASSIC - 0910865 from 1991

MAGNETO 500 AND 500 CLASSIC (4919251925026A)

MAGNETO 500 AND 500 CLASSIC (4919251925026A)

for 500 CLASSIC - 0910865 from 1991

RECOIL STARTER 500 AND 500 CLASSIC (4919251925027A)

RECOIL STARTER 500 AND 500 CLASSIC (4919251925027A)

for 500 CLASSIC - 0910865 from 1991

OIL PUMP 500 AND 500 CLASSIC (4919251925028A)

OIL PUMP 500 AND 500 CLASSIC (4919251925028A)

for 500 CLASSIC - 0910865 from 1991

FUEL PUMP 500 AND 500 CLASSIC (4919251925029A)

FUEL PUMP 500 AND 500 CLASSIC (4919251925029A)

for 500 CLASSIC - 0910865 from 1991

CARBURETOR '500 AND 500 CLASSIC (4919251925030A)

CARBURETOR '500 AND 500 CLASSIC (4919251925030A)

for 500 CLASSIC - 0910865 from 1991

CARBURETOR-ECSOPL-04,-05 500 AND 500 CLASSIC (4919251925035A)

CARBURETOR-ECSOPL-04,-05 500 AND 500 CLASSIC (4919251925035A)

for 500 CLASSIC - 0910865 from 1991

BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615

BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615

for 500 CLASSIC - 0910865 from 1991

CHASSIS AND SEAT 500 AND 500 CLASSIC (4919251925001A)

CHASSIS AND SEAT 500 AND 500 CLASSIC (4919251925001A)

for 500 CLASSIC - 0910865 from 1991

HOOD 500 AND 500 CLASSIC (4919251925003A)

HOOD 500 AND 500 CLASSIC (4919251925003A)

for 500 CLASSIC - 0910865 from 1991

SUSPENSION 500 AND 500 CLASSIC (4919251925011A)

SUSPENSION 500 AND 500 CLASSIC (4919251925011A)

for 500 CLASSIC - 0910865 from 1991

ENGINE MOUNTING 500 AND 500 CLASSIC (4919251925013A)

ENGINE MOUNTING 500 AND 500 CLASSIC (4919251925013A)

for 500 CLASSIC - 0910865 from 1991

DRIVE CLUTCH 500 AND 500 CLASSIC TO SERIAL NO. 1841611 (4919251925015A)

DRIVE CLUTCH 500 AND 500 CLASSIC TO SERIAL NO. 1841611 (4919251925015A)

for 500 CLASSIC - 0910865 from 1991

DRIVE CLUTCH FROM SERIAL NO. 1841612 (4919251925015B)

DRIVE CLUTCH FROM SERIAL NO. 1841612 (4919251925015B)

for 500 CLASSIC - 0910865 from 1991

STEERING 500 AND 500 CLASSIC (4919251925020A)

STEERING 500 AND 500 CLASSIC (4919251925020A)

for 500 CLASSIC - 0910865 from 1991

CRANKCASE 500 AND 500 CLASSIC (4919251925023A)

CRANKCASE 500 AND 500 CLASSIC (4919251925023A)

for 500 CLASSIC - 0910865 from 1991

CYLINDER 500 AND 500 CLASSIC (4919251925024A)

CYLINDER 500 AND 500 CLASSIC (4919251925024A)

for 500 CLASSIC - 0910865 from 1991

PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4919251925025A)

PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4919251925025A)

for 500 CLASSIC - 0910865 from 1991

STARTER 500 AND 500 CLASSIC (4919251925031A)

STARTER 500 AND 500 CLASSIC (4919251925031A)

for 500 CLASSIC - 0910865 from 1991

WATER PUMP 500 AND 500 CLASSIC (4919251925032A)

WATER PUMP 500 AND 500 CLASSIC (4919251925032A)

for 500 CLASSIC - 0910865 from 1991

MAGNETO-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925033A)

MAGNETO-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925033A)

for 500 CLASSIC - 0910865 from 1991

OIL PUMP-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925034A)

OIL PUMP-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925034A)

for 500 CLASSIC - 0910865 from 1991

POLARIS 500 CLASSIC - 0910865 1991

500 CLASSIC - 0910865

500 CLASSIC - 0910865

Model : OTHERS

Engine capacity : 500

Year : 1991

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
