1
Engine displacement
500
2
Year
2006
3
Trim
PREDATOR 500 - A06GJ50AA
4
Parts Catalog
CLUTCH
5
Parts Diagram
Parts Catalog
SHIFTING
by
FUEL PUMP
CLUTCH
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
-
ASM. CLUTCH MULTI
3089616
9999999
Not Available
1
PLATE RELEASE SHAFT
3089621
9999999
Not Available
2
SPRING RELEASE
3088079
9999999
Not Available
3
ASM. RELEASE SHAFT
3088078
9999999
Not Available
4
FLANGE BOLT
3084877
9999999
Not Available
5
COLLAR DISTANCE
3089619
9999999
Not Available
6
ASM. CLUTCH OUTER
3089617
9999999
Not Available
7
WASHER THRUST
3088186
9999999
Not Available
8
ASM. CENTER CLUTCH
3088180
9999999
Not Available
9
PUSHER
3088081
9999999
Not Available
10
ROD PUSH
3089620
9999999
Not Available
11
NUT LOCK
3086285
9999999
Not Available
12
WASHER-LOCK
3086286
9999999
Not Available
13
CLUCH PLATE
3088184
9999999
Not Available
14
DISK BCLUTCH FRICTION
3088185
9999999
Not Available
15
DISK A;CLUTCH FRICTION
3089618
9999999
Not Available
16
SPRING CLUTCH
3088177
9999999
Not Available
17
WASHER CLUTCH SPRING
3088176
9999999
Not Available
18
BOLT
3088175
9999999
Not Available
19
GASKET CLUTCH COVER
3089615
9999999
Not Available
20
ASM. CLUTCH COVER
3089687
9999999
Not Available
20
ASM. CLUTCH COVER
3089614
9999999
Not Available
21
PIPE ASSEMBLY
3085850
9999999
Not Available
22
FLANGE BOLT
3084874
9999999
Not Available
23
OIL SEAL CRANK
3088072
9999999
Not Available
24
SNAP RING;INNER
3088073
9999999
Not Available
25
DISK CLUTCH PRESSURE
3088178
9999999
Not Available
26
BEARING BALL
3088179
9999999
Not Available

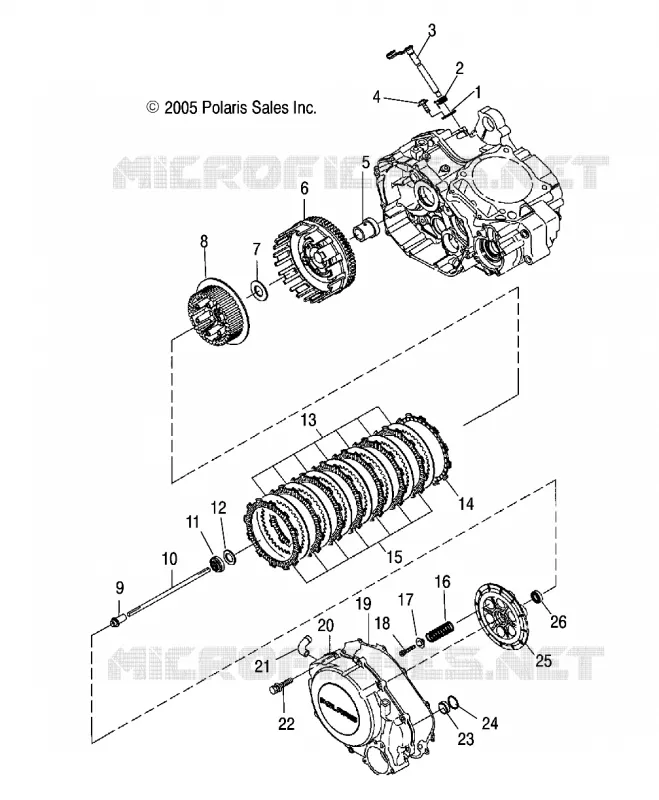

Find the detailed CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
