1
Engine displacement
500
2
Year
2006
3
Trim
PREDATOR 500 - A06GJ50AA
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
COOLING
by
REAR WHEEL
ENGINE MOUNTING
1
1
2
3
4
4
5
6
6
6
6
7
7
7
7
7
8
9
10
11
12
13
13
14
15
15
16
16
17
18
19
20
21
22
22
22
22
23
23
24
25
26
1
2
3
3
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
FUEL LINE; 1/4 ID
84500031525
Not Available
2
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
3
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
4
WASHER-9/16 HARDENED
7556264
9999999
Not Available
5
BOLT-SWING ARM;9/16
7518148
9999999
Not Available
6
NUT
7547108
$9,44 Unit Price incl. VAT
7
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
8
SCREW
7515433
$3,14 Unit Price incl. VAT
9
ENGINE-ES500PLE-021
3089907
9999999
Not Available
10
BRKT-MOUNT CLUTCH CABLE
5248313
9999999
Not Available
11
SCR-M6X1.0X12 PH/TX-Y
7518430
$9,44 Unit Price incl. VAT
12
SCR-M6X1.0X50 PH/TX-Y
7518431
9999999
Not Available
13
SCR-M6X1.0X16.0-HX/FL-P80-Y
7517915
9999999
Not Available
14
OIL RETURN HOSE ASSEMBLY
2520413
9999999
Not Available
15
O-RING
5411356
$4,19 Unit Price incl. VAT
16
WASHER
7556113
$9,44 Unit Price incl. VAT
17
ASM-HOSE OIL SUCTION
2520414
9999999
Not Available
18
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
19
SCREW
7517653
9999999
Not Available
20
BRKT-MOUNT REVERSE CABLE
5248314
9999999
Not Available
21
BOLT
7517507
$41,99 Unit Price incl. VAT
22
MOUNT-MOTOR LOWER LH
5248315
9999999
Not Available
22
MOUNT-MOTOR LOWER RH
5248316
9999999
Not Available
23
BOLT
7512457
$7,34 Unit Price incl. VAT
24
BOLT
7515514
$13,64 Unit Price incl. VAT
25
NUT-9/16-18 NYLON LOCKNUT Z
7547096
9999999
Not Available
26
CABLE TIE
7080138
$5,24 Unit Price incl. VAT

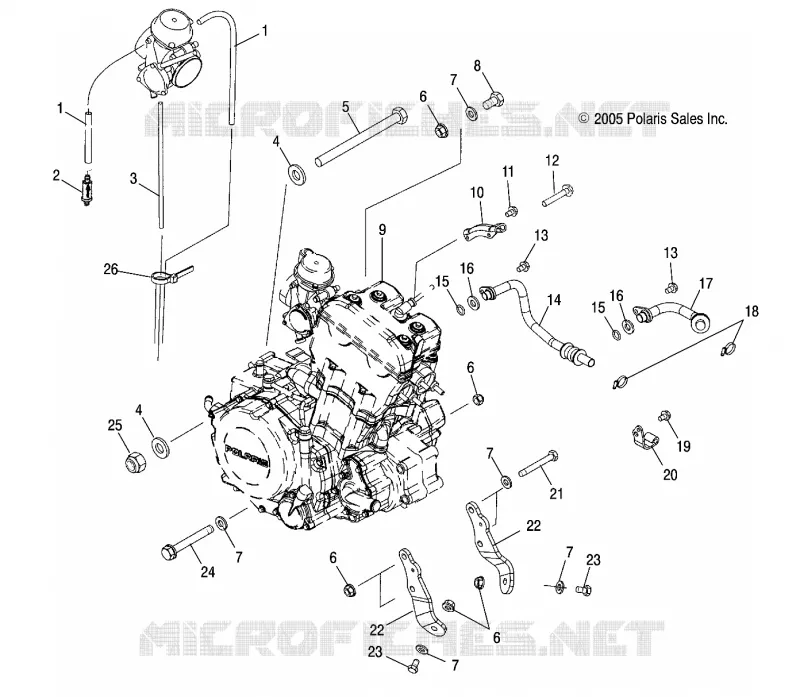

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
