1
Engine displacement
1000
2
Year
2017
3
Trim
SPORTSMAN XP 1000 EU
4
Parts Catalog
REAR BODYWORK RACK
5
Parts Diagram
Parts Catalog
REAR BODYWORK BUMPER
by
CHASSIS, MAIN FRAME
REAR BODYWORK RACK
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
17
17
18
19
20
21
1
RACK-REAR BLK
5452936070
Not Available
1
ASM-RACK REAR BLK
2636716070
Not Available
2
DECAL-WARN RR RACK 55/110 EU
7185991
Not Available
3
COMPARTMENT PLUG
5412981
5418084
$6,29 Unit Price incl. VAT
4
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
5
STORAGE COVER; REAR; GLOSS BLACK
5452955070
Not Available
6
LATCH-REAR STORAGE
5452964
$25,19 Unit Price incl. VAT
7
BOX SEAL REAR
5522202
5526451
$52,49 Unit Price incl. VAT
8
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
9
SCR-M6X1X60 TX TR BLK
7518882
$7,34 Unit Price incl. VAT
10
PLUNGER-LATCH 6MM
7520527
$25,19 Unit Price incl. VAT
11
BOLT
7519650
$7,34 Unit Price incl. VAT
12
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
13
PIN-HINGE 5MM
7662307
$19,94 Unit Price incl. VAT
14
SHIELD-HEAT REAR CAB
5262917
$36,74 Unit Price incl. VAT
15
WELD-RR RACK;SUPPORT;SPMN;M.BL
1022355458
Not Available
16
RACK EXTENDER; MATTE BLACK
5633722458
Not Available
17
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
18
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
19
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
20
PLUG-END CAP;1.25 DIA;RIBBED
5450305
$9,44 Unit Price incl. VAT
21
PRE-COIL COVER CABLE
7081741
$68,24 Unit Price incl. VAT

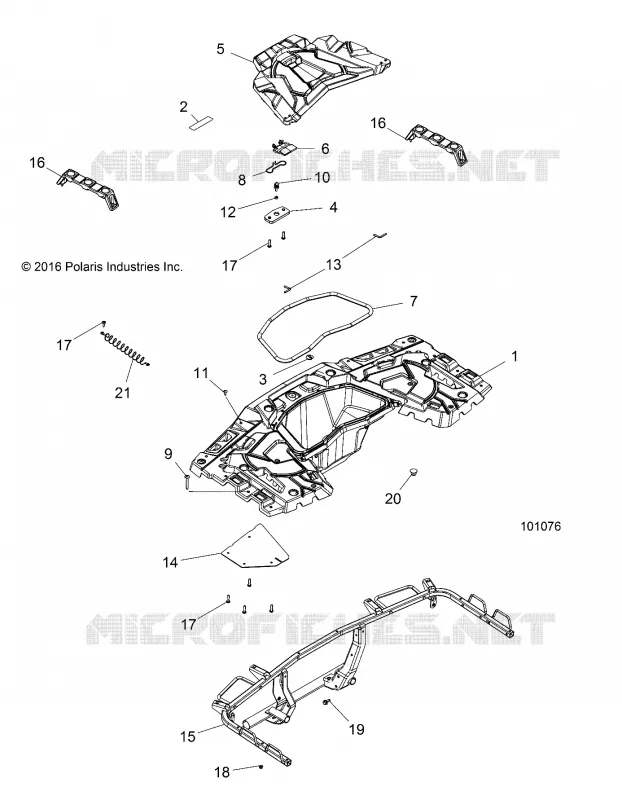

Find the detailed REAR BODYWORK RACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
