ENGINE, COOLING SYSTEM for POLARIS SPORTSMAN XP 1000 EU from 2017

CAM CHAIN AND TENSIONER

ENGINE, MOUNTING AND TRANSMISSION MOUNTING

ENGINE, COOLING SYSTEM

1

HOSE-RADIATOR ENGINE OUT 25MM

5414392

$104,99 Unit Price incl. VAT

2

RADIATOR HOSE; ENGINE IN; 25 MM

5414391

$104,99 Unit Price incl. VAT

3

BOTTLE ASSEMBLY; COOLANT RECOVERY

1240406

$141,74 Unit Price incl. VAT

4

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

5

GROMMET AND INSERT ASSEMBLY

5413509

$30,23 Unit Price incl. VAT

6

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

7

SCR-HXFL-M6X1.0X30 RIE DGPNT

7519202

$7,34 Unit Price incl. VAT

8

PRESSURE CAP; 13 PSI

1240466

$104,99 Unit Price incl. VAT

9

RADIATOR ASSEMBLY

1240702

1241438

$1 296,74 Unit Price incl. VAT

9

RADIATOR

1240706

$224,98 Unit Price incl. VAT

10

RADIATOR MOUNT GROMMET; LOWER

5413510

$30,23 Unit Price incl. VAT

11

CLAMP-HOSE 1.312 VINYL COATED

7080851

9999999

Not Available

12

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

13

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

14

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

15

GASKET

5810279

$4,19 Unit Price incl. VAT

16

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

17

BOTTLE-COOLANT RECOVERY

5437257

1240406

$141,74 Unit Price incl. VAT

18

FAN

2412286

2415280

$488,24 Unit Price incl. VAT

19

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

20

COOLANT LINE; 27 CM

845012827

Not Available

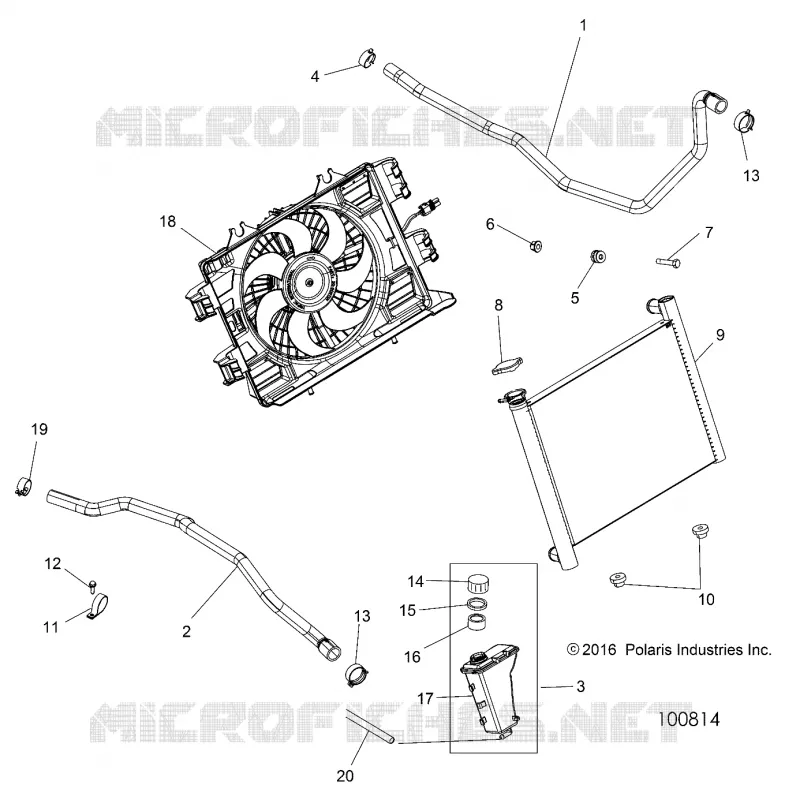

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
