1
Engine displacement
autre
2
Year
1994
3
Trim
STORM SKS - 0940582
4
Parts Catalog
ENGINE MOUNTING STORM 0940782 AND STORM SKS 0940582 (4925032503025A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503024A)
by
EXHAUST SYSTEM STORM 0940782 AND STORM SKS 0940582 (4925032503026A)
ENGINE MOUNTING STORM 0940782 AND STORM SKS 0940582 (4925032503025A)
1
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
2
FUEL LINE; 600 CM
8450040600
Not Available
3
FUEL FILTER
2530008
9999999
Not Available
4
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
5
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
6
VALVE FUEL SHUT-OFF
7051010
9999999
Not Available
7
WASHER(10)
7555892
9999999
Not Available
8
WELL NUT
7541923
$10,49 Unit Price incl. VAT
9
BRKT BOOST-TUBE BLK.
5240343067
Not Available
10
ASM. BOLT&WASHER
3083729
9999999
Not Available
11
DECAL FUEL SHUT-OFF
7073869
Not Available
12
TUBE BOOST
5431678
9999999
Not Available
13
CLAMP
7080533
9999999
Not Available
14
FITTING TEE
7052089
9999999
Not Available
15
SCREW(10)
7512222
9999999
Not Available
16
WASHER
7552604
$3,14 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
SCREW
7512279
$1,56 Unit Price incl. VAT
19
STRAP BLK
7080272
9999999
Not Available
20
BOLT
7512565
9999999
Not Available
21
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
22
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
23
CABLE THROTTLE/OIL STORM
7080462
9999999
Not Available
24
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
25
ENG.EC50PL-08 [No Longer Available]
1211538
Not Available
25
ENG.(S.B.)EC80PL [No Longer Available]
3084628
Not Available
26
HANDLE-RECOIL
5430520
Not Available
27
SCREW
7512530
$10,49 Unit Price incl. VAT
28
WASHER
7555740
$3,14 Unit Price incl. VAT
29
MOUNT ENGINE
5410390
9999999
Not Available
30
TUBE; SPACER
5333258
9999999
Not Available
31
RETAINER; NUT
1011907
9999999
Not Available
32
SCREW
7512057
9999999
Not Available
33
PLATE RH ENGINE
5222777
Not Available
34
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
35
BOLT
7512575
9999999
Not Available
36
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
37
WASHER
7555721
$2,09 Unit Price incl. VAT
38
MOUNT
3110022
9999999
Not Available
39
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
40
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
41
PLATE;LH ENGINE
5222776
5240816
Not Available
42
LIMITER TORQUE
1011879067
Not Available
43
RIVET
7661637
$2,09 Unit Price incl. VAT
44
NUT JAM
7542432
$7,34 Unit Price incl. VAT
45
MOUNT;TORQUESTOP;RUBBER
3110034
9999999
Not Available

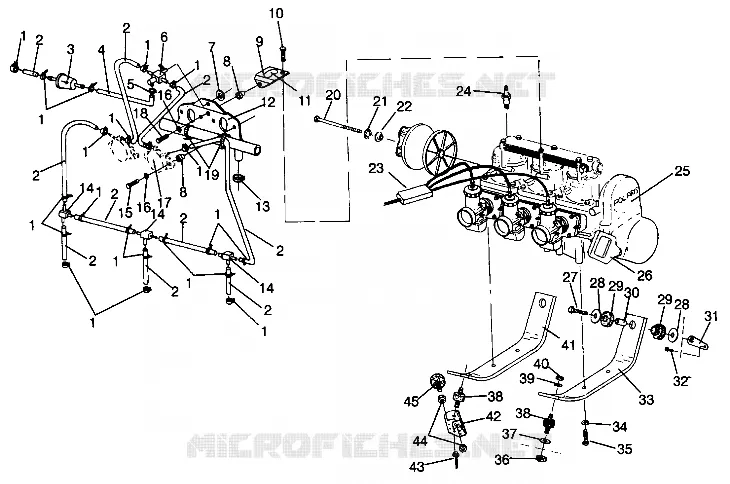

Find the detailed ENGINE MOUNTING STORM 0940782 AND STORM SKS 0940582 (4925032503025A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
