1
Engine displacement
autre
2
Year
1994
3
Trim
STORM SKS - 0940582
4
Parts Catalog
NOSEPAN Storm 0940782 and Storm SKS 0940582 (4925032503003A)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503002A)
by
HOOD ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503005A)
NOSEPAN Storm 0940782 and Storm SKS 0940582 (4925032503003A)
1
BUMPERLH EXT.
2670114
9999999
Not Available
1
BUMPERRH EXT.
2670115
9999999
Not Available
2
RIVET
7621318
9999999
Not Available
3
GUIDE HOOD
5220984
Not Available
4
REFLECTOR AMBER
2670071
9999999
Not Available
5
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
6
BOLT
7512296
9999999
Not Available
7
CAP BUMPER RH
5431084
9999999
Not Available
7
CAPBUMPERLH
5431083
9999999
Not Available
8
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
9
PAN BRACE; RIGHT
5220523067
Not Available
9
PAN BRACE LEFT
5220522067
Not Available
10
HOOD LATCH STRAP
5410370
$47,24 Unit Price incl. VAT
11
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
12
RIVET
7621452
9999999
Not Available
13
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
14
GUIDE HOOD RH
5510134
9999999
Not Available
14
GUIDE-HOOD LH
5510133
9999999
Not Available
15
POP RIVET
7621402
$2,09 Unit Price incl. VAT
16
BRKT FR.CORNER BLK.
5222976029
Not Available
17
BRACE HINGE
5220951
9999999
Not Available
18
RIVET
7621418
$2,09 Unit Price incl. VAT
19
BRKT FR.MUFFLER BLK.
5240403029
Not Available
20
SHIELD FR.HEAT
5222977
9999999
Not Available
21
RIVET
7661637
$2,09 Unit Price incl. VAT
22
SHIELD HEAT SIDE
5222978
Not Available
23
PLUIG
5410344
$10,49 Unit Price incl. VAT
24
RIVET(50)
7621453
9999999
Not Available
25
NOSEPAN VAC.FORM BLK.
5410833067
Not Available

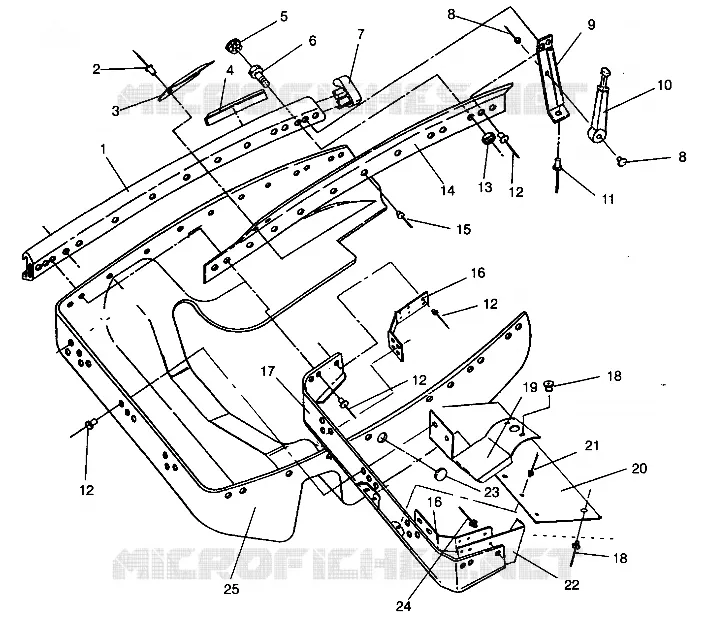

Find the detailed NOSEPAN Storm 0940782 and Storm SKS 0940582 (4925032503003A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
