1
Engine displacement
autre
2
Year
1993
3
Trim
EURO STARLITE - E933427
4
Parts Catalog
CARBURETOR LITE GT/0933133 (4923232323032A)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT STARLITE GT / 0933127 (4923232323031A)
by
CARBURETOR STARLITE GT / 0933127 (4923232323033A)
CARBURETOR LITE GT/0933133 (4923232323032A)
1
TOP MIX CHAMBER
3130060
9999999
Not Available
2
THROTTLE SPRING
3130354
9999999
Not Available
3
THROTTLE PLATE
3130002
9999999
Not Available
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE-JET (5DP7-2)
3130356
3130155
$52,49 Unit Price incl. VAT
6
THROTTLE VALVE; 2.5
3130468
9999999
Not Available
7
NEEDLE JET
3130469
9999999
Not Available
8
CAP; PLUNGER
3130359
9999999
Not Available
9
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
10
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
11
SPRING
3130010
$18,89 Unit Price incl. VAT
12
SCREW THROTTLE STOP
3130324
9999999
Not Available
13
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
14
SPRING AIR ADJUST
3130012
9999999
Not Available
15
JET PILOT #35(10)
3130066
9999999
Not Available
16
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
17
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
18
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
19
PLUG TRAP
5431001
5431893
$26,24 Unit Price incl. VAT
20
FUEL LINE;3/8(GAUGE)
8450041
8450003-1525
$136,49 Unit Price incl. VAT
21
FITTING SEDIMENT CARB.
5020647
3130573
$68,24 Unit Price incl. VAT
22
O-RING
3130239
9999999
Not Available
23
JET MAIN #145
3130351
9999999
Not Available
24
WASHER
3130014
$3,14 Unit Price incl. VAT
25
CARBURETOR (LITE)
3130467
9999999
Not Available
26
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
29
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
30
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
31
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
32
PIN FLOAT
3130043
9999999
Not Available

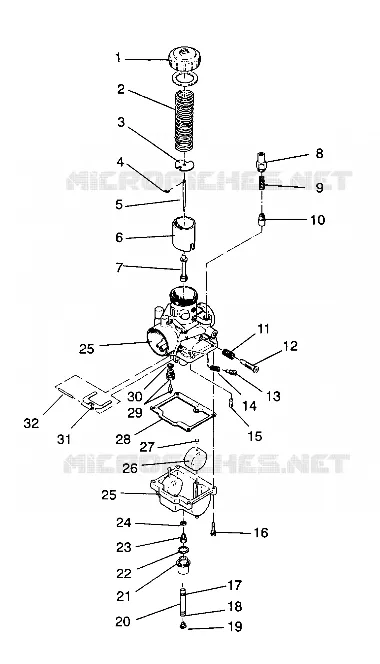

Find the detailed CARBURETOR LITE GT/0933133 (4923232323032A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
