1
Engine displacement
autre
2
Year
1993
3
Trim
EURO STARLITE - E933427
4
Parts Catalog
ENGINE MOUNTING STARLITE GT / 0933127 (4923232323022A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM LITE GT/0933133 AND STARLITE GT/0933127 (4923232323017A)
by
EXHAUST SYSTEM LITE GT/0933133 (4923232323023A)
ENGINE MOUNTING STARLITE GT / 0933127 (4923232323022A)
1
ENG.EC25PS-07 [No Longer Available]
1211520
Not Available
2
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
3
HANDLE-RECOIL
5430520
Not Available
4
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
5
CABLE; THROTTLE
7080410
9999999
Not Available
6
LINE FUEL GOODYEAR 1/4SAE#30R
8450040
8450040-600
$136,49 Unit Price incl. VAT
7
CLAMP; HOSE
7080490
9999999
Not Available
8
FUEL FILTER
2530008
9999999
Not Available
9
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
10
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
11
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
12
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
13
BOLT
7512566
9999999
Not Available
14
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
15
MOUNT-MTR.
3110020
Not Available
16
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
17
NUT LOCK
7542403
9999999
Not Available
18
PLATE ENG.MT BLK.
5222539067
Not Available
19
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
20
BOLT
7512539
$7,34 Unit Price incl. VAT
21
MOUNT ENGINE
3110028
9999999
Not Available
22
CHANNEL ENG.MT.
5222540067
Not Available
23
BOLT
7512457
$7,34 Unit Price incl. VAT
24
STRAP ENG.MT BLK.
5211266067
Not Available
25
LOCK WASHER
7571611
9999999
Not Available
26
SCR-3/8-24X1 1/4-HX CAP(10)
7512405
$6,29 Unit Price incl. VAT

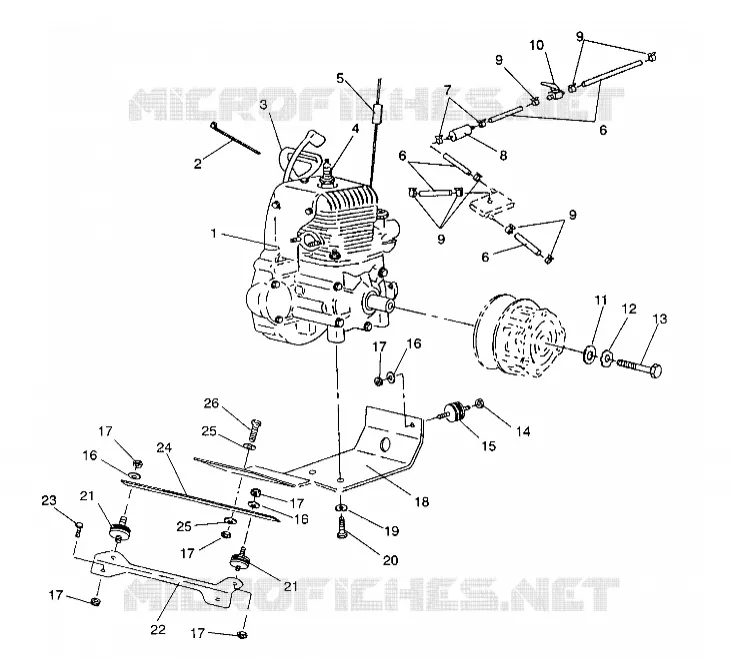

Find the detailed ENGINE MOUNTING STARLITE GT / 0933127 (4923232323022A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
