CRANKCASE AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
MANIFOLD THERMOSTAT
by
FUEL INJECTOR
CRANKCASE AND CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
25
26
27
28
29
30
31
32
33
34
35
1
2
2
3
1
PLUG-HEX SOCKET 1/4X18
7518007
9999999
Not Available
2
HOLLOW DOWEL; 16 MM X 12 MM
7661175
$10,49 Unit Price incl. VAT
3
EXPANSION PLUG; 19 MM
7051530
$15,74 Unit Price incl. VAT
4
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
5
JOURNAL BALL SHAFT BEARING
5132753
9999999
Not Available
6
BALANCE SHAFT
5132396
9999999
Not Available
7
FLANGE SEAL; 35 X 72 X 7
5412114
9999999
Not Available
8
BEARING-BALL DP GRV 35X72X17
3514361
3585503
$54,59 Unit Price incl. VAT
9
BALL BEARING
3514318
$74,54 Unit Price incl. VAT
10
BUSHING-35X44X3.00 MM-B (10)
7556194
$7,34 Unit Price incl. VAT
11
KIT-CRANKSHAFT 700 ATV
2202702
9999999
Not Available
12
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
13
O-RING SEAL; .070 X .614
5812016
$5,76 Unit Price incl. VAT
14
RING-RETAINING 1 5/8 (10)
7710512
$7,34 Unit Price incl. VAT
15
OIL PICKUP ASSEMBLY
1202663
$104,99 Unit Price incl. VAT
16
EXPANSION PLUG; 48 MM
3060004
9999999
Not Available
17
HEX FLANGE SCREW; 8 MM X 1.25 MM X 90 MM
7517792
$4,19 Unit Price incl. VAT
18
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
19
KIT-CRANKCASE ASM
2202694
9999999
Not Available
20
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
21
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
22
MAIN JOURNAL BEARING
3585704
$40,94 Unit Price incl. VAT
23
HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM
7517865
$20,99 Unit Price incl. VAT
24
WASHER RETAINING 8.5X28X3
7555982
7558715
$26,24 Unit Price incl. VAT
25
KIT-GEAR SET
2202145
9999999
Not Available
26
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
27
CRANKCASE BAFFLE PLATE
5211785
9999999
Not Available
28
HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM
7518045
9999999
Not Available
29
SPRING WASHER; 1.1 X .559 X .0315
7556183
$17,84 Unit Price incl. VAT
30
WOODRUFF KEY #404
7721131
$41,99 Unit Price incl. VAT
31
SCREW
7517598
$19,94 Unit Price incl. VAT
32
THRUST PLATE
5244286
9999999
Not Available
33
CAMSHAFT KIT
2202723
9999999
Not Available
34
PLUG-EXPANSION 13MM 500 PSI
7052288
9999999
Not Available
35
PLUG EXPANSION 9MM 500PSI
7051531
9999999
Not Available

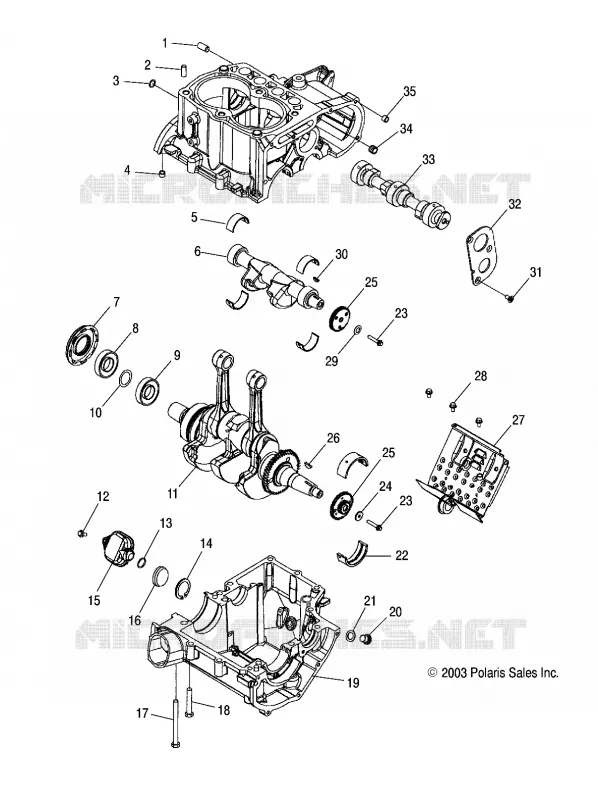

Find the detailed CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
