AIR BOX for POLARIS A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU from 2004

AIR BOX

1

PRECLEANER FILTER SLEEVE

5811633

$19,20 Unit Price incl. VAT

2

FILTER AIR

7080595

7083107

$51,23 Unit Price incl. VAT

3

CLAMP BAND; NARROW

7080413

$5,76 Unit Price incl. VAT

4

SLEEVE-CARB INNER

5433847

$27,29 Unit Price incl. VAT

5

AIRBOX COVER

5432868

9999999

Not Available

6

SCREW

7517317

$6,29 Unit Price incl. VAT

7

DUCT-AIR INTAKE

5434013

9999999

Not Available

8

INTAKE GASKET

5411422

$10,49 Unit Price incl. VAT

9

SEAL COVER

5811482

5813949

$52,49 Unit Price incl. VAT

10

AIR BOX

5433678

9999999

Not Available

11

CLUTCH AIR INLET DUCT

5434044

9999999

Not Available

12

CLIP

7670102

$4,19 Unit Price incl. VAT

13

FOAM SEAL

5812316

9999999

Not Available

14

CLAMP HOSE S.S.(10)

7080451

$13,64 Unit Price incl. VAT

15

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

16

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

17

HOSE CLAMP

7080699

$3,14 Unit Price incl. VAT

18

LINE BREATHER 3/8 ID.

8450073600

Not Available

19

BREATHER FILTER IN LINE

2530029

9999999

Not Available

20

FORMED BREATHER HOSE WITH CHAFE; 10 CM

5411966

9999999

Not Available

21

CLAMP HOSE SPRING

7080694

$10,49 Unit Price incl. VAT

22

REFLECT SLEEVE SHEATH; 19 X 24 CM

845010834

Not Available

23

HOSE-BREATHER SLIT 38.4CM

5412615

2202744

$68,24 Unit Price incl. VAT

24

HOSE CLAMP

7080534

$3,14 Unit Price incl. VAT

25

CAP END 406-12 3/4BLK

5433396

$9,44 Unit Price incl. VAT

26

CLIP

5242044

$17,84 Unit Price incl. VAT

27

TRAP PLUG

5435299

9999999

Not Available

27

PLUG TRAP

5432377

9999999

Not Available

28

FUEL LINE

8450059150

Not Available

29

CLAMP HOSE

7080650

$7,34 Unit Price incl. VAT

30

FOIL

5811650

9999999

Not Available

31

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

32

SCREW

7515179

$4,19 Unit Price incl. VAT

33

THROTTLE BODY BOOT

5412518

$83,99 Unit Price incl. VAT

34

SENSOR-T MAP

2410422

2411528

$178,49 Unit Price incl. VAT

35

SCREW

7517658

$10,49 Unit Price incl. VAT

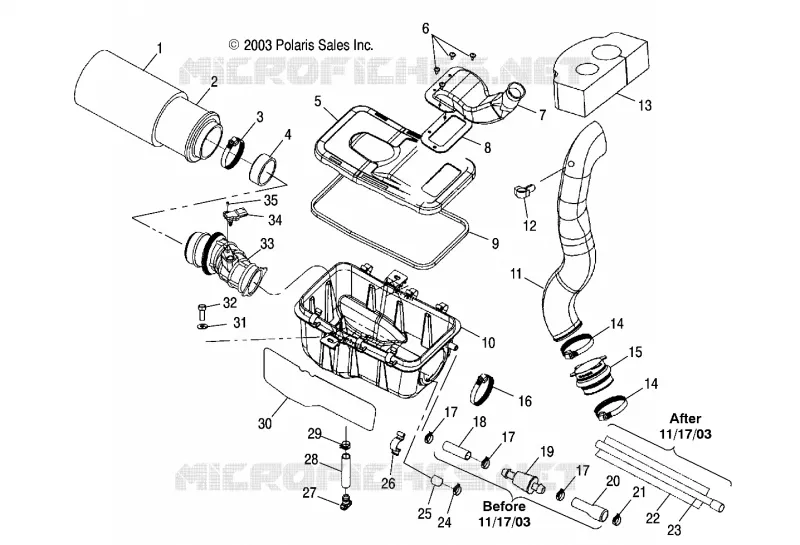

Find the detailed AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
