THROTTLE BODY AND FUEL RAIL for POLARIS SPORTSMAN 570 EFI TOURING EU from 2015

THROTTLE BODY AND FUEL RAIL

1

FUEL INJECTOR

2521068

$188,99 Unit Price incl. VAT

2

1 CYLINDER FUEL RAIL

2521403

$206,63 Unit Price incl. VAT

3

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

4

ELEC THROTTLE CONTROL THROTTLE 46MM

1204455

$997,49 Unit Price incl. VAT

5

THROTTLE BODY ADAPTER

5415006

5418147

Not Available

6

SCR-M6X1.0X50.0 HX/FL-Y/D

7520078

$7,34 Unit Price incl. VAT

7

SOCKET HEAD SCREW 8 MM X 1.25 MM X 25 MM

7519859

$10,49 Unit Price incl. VAT

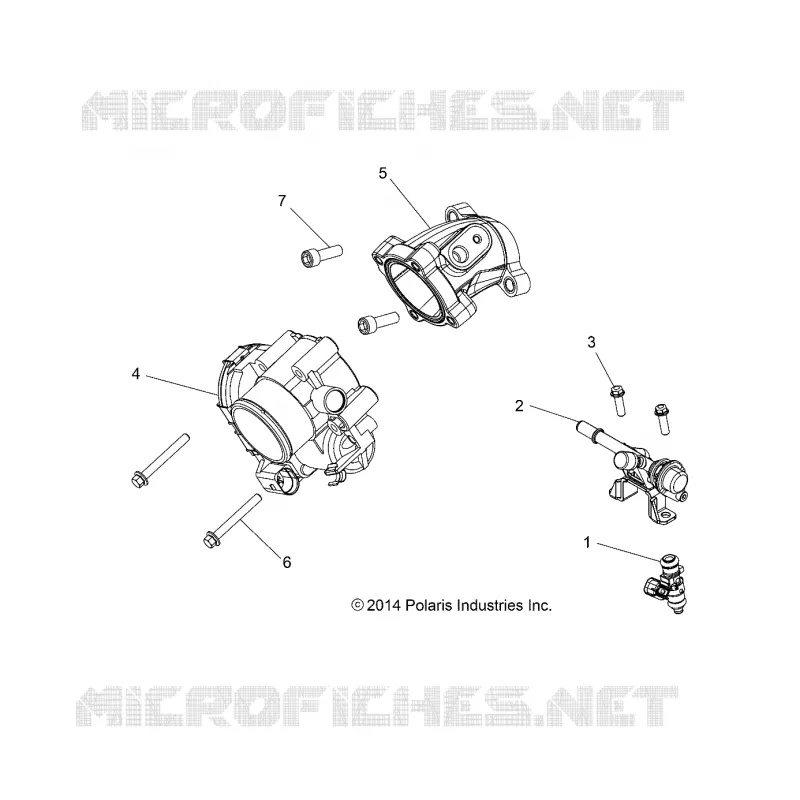

Find the detailed THROTTLE BODY AND FUEL RAIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
