Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 EFI TOURING EU
4
Parts Catalog
REAR BRAKE BRAKE LINES
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE FRONT BRAKE CALIPER
by
BRAKES, BRAKE REAR CALIPER
REAR BRAKE BRAKE LINES
1
1
2
2
2
3
3
3
4
4
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
BRAKE CALIPER ASSEMBLY
1911122
Not Available
2
LINE-BRK REAR SV T 90F 45B 45B
1912198
Not Available
3
LINE-BRK REAR AUXT 70R 70B 70B
1912197
Not Available
4
SEAL
5413212
9999999
Not Available
5
BOLT
7512457
$7,34 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
7
WASHER .390 IN X .750 IN X .0
7556188
9999999
Not Available
8
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
9
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
10
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
11
SCREW
7515153
9999999
Not Available
12
HEX NUT
7542105
$7,34 Unit Price incl. VAT
13
CLIP SNAP-IN
7080756
$9,44 Unit Price incl. VAT
14
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
SCREW
7517386
$2,09 Unit Price incl. VAT
17
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
18
ROSEBUD CLIP
4020149
$12,59 Unit Price incl. VAT
19
CLIP-HALF-Y
7081940
$7,34 Unit Price incl. VAT
20
SCREW
7512024
$9,44 Unit Price incl. VAT

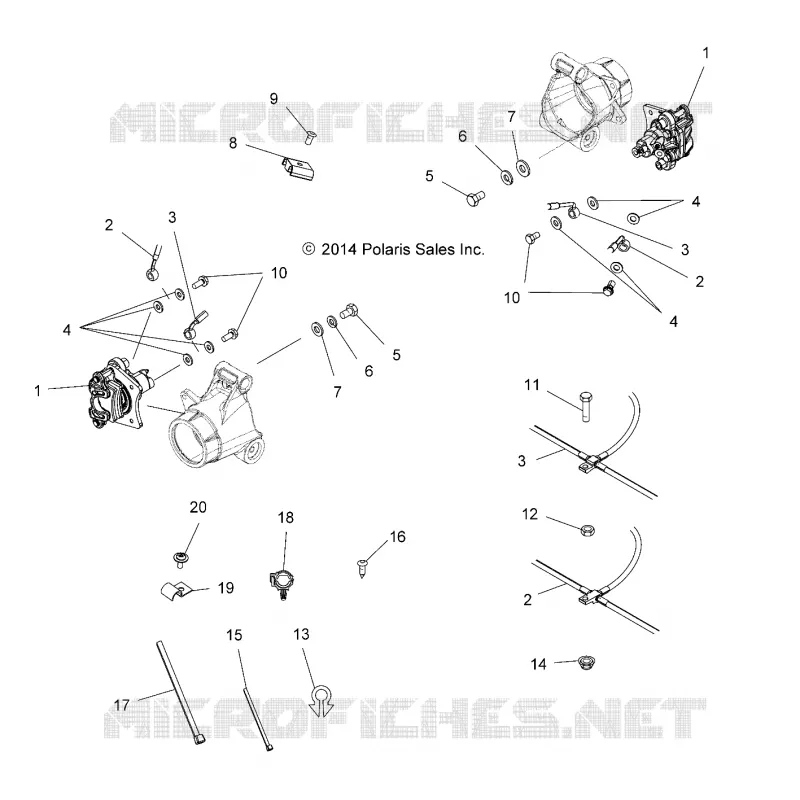

Find the detailed REAR BRAKE BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
