1
Engine displacement
400
2
Year
1997
3
Trim
SCRAMBER 400L - W97BC38C
4
Parts Catalog
WISHBONES Scrambler 400L W97BC38C (4939893989B010)
5
Parts Diagram
Parts Catalog
STEERING POST SCRAMBLER 400L W97BC38C (4939893989B009)
by
CONTROLS
WISHBONES Scrambler 400L W97BC38C (4939893989B010)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
20
20
20
21
21
22
22
23
24
24
24
24
25
26
26
27
27
28
29
1
NUT LOCK
7542403
9999999
Not Available
2
BUSHING
5333367
9999999
Not Available
3
TIEROD ASM.
1822478
2201741
$309,74 Unit Price incl. VAT
4
SEAL BOOT ROD END 1/2 IN
5411291
5412928
$20,99 Unit Price incl. VAT
5
ROD END
7061019
7061139
$115,49 Unit Price incl. VAT
6
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
7
TIE ROD
5020926
$83,99 Unit Price incl. VAT
8
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
9
ROD END;LH;W/FTG.
7061018
2201743
$115,49 Unit Price incl. VAT
10
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
11
NUT CASTLE(10)
7546904
9999999
Not Available
12
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
BALLJOINT HI-ANGLE
7080673
7061306
$52,49 Unit Price incl. VAT
15
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
16
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
17
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
18
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
19
SCREW
7512084
$2,09 Unit Price incl. VAT
20
SHIELD RH CV JOINT
5431149
9999999
Not Available
20
SHIELD LH CV JOINT
5431150
9999999
Not Available
21
BUSHING A-ARM LONG.
5431596
5436973
$9,44 Unit Price incl. VAT
22
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
23
SHAFT; A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
24
KIT A-FRAME RH
2200532
9999999
Not Available
24
KIT A-FRAME LH
2200531
9999999
Not Available
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
27
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
28
SCREW
7515554
9999999
Not Available
29
SCREW
7515415
9999999
Not Available

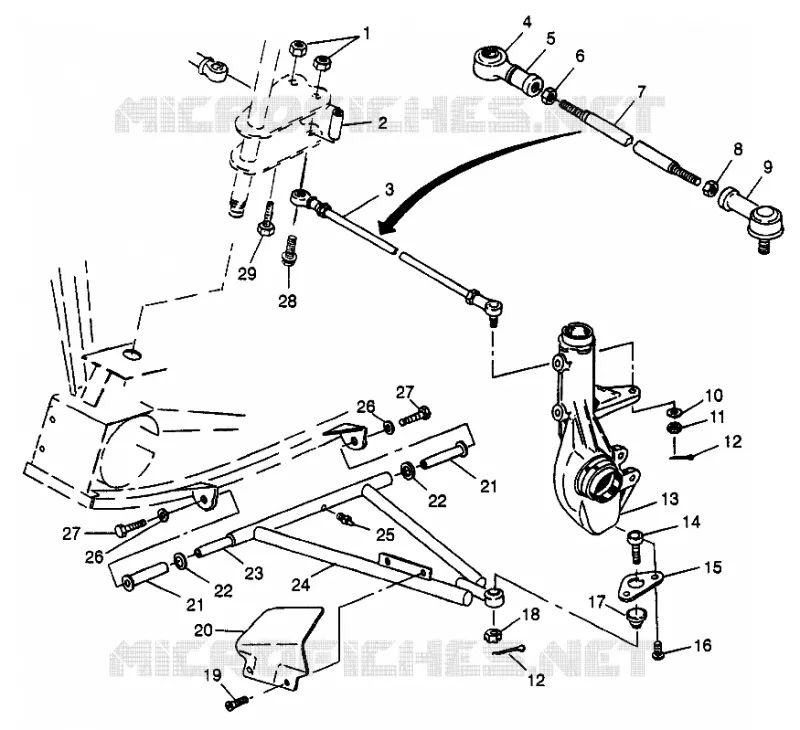

Find the detailed WISHBONES Scrambler 400L W97BC38C (4939893989B010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
