Engine displacement
400
2
Year
1997
3
Trim
SCRAMBER 400L - W97BC38C
4
Parts Catalog
PISTON CRANKSHAFT SCRAMBLER 400L W97BC38C (4939893989C014)
5
Parts Diagram
Parts Catalog
SHOCK VALVING SCRAMBLER 400L W97BC38C (4939893989C013)
by
STARTING MOTOR SCRAMBLER 400L W97BC38C (4939893989D006)
PISTON CRANKSHAFT SCRAMBLER 400L W97BC38C (4939893989C014)
-
1
1
2
2
3
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
16
16
16
17
17
18
19
20
21
22
22
22
22
23
-
PISTON RING .50MM O/S
3084739
9999999
Not Available
1
STANDARD PISTON RING
3084737
9999999
Not Available
1
PISTON RING .25 MM
3084738
9999999
Not Available
2
PISTON PIN CLIP
3084167
2207579
$356,99 Unit Price incl. VAT
3
PISTON PIN
3083838
2207579
$356,99 Unit Price incl. VAT
4
SET PISTON .020/.50MM O/S
3085519
9999999
Not Available
4
SET PISTON .010/.25MM O/S
3085518
9999999
Not Available
4
SET PISTON STANDARD
3085488
9999999
Not Available
5
BALANCER
3084172
9999999
Not Available
6
PLATE
3084173
9999999
Not Available
7
BOLT FLANGE
3084174
9999999
Not Available
8
KEY; WOODRUFF
3080130
3081543
$26,24 Unit Price incl. VAT
9
GEAR DRIVE
3084156
9999999
Not Available
10
WASHER GUIDE
3084159
9999999
Not Available
11
O RING
3084160
9999999
Not Available
12
COLLAR
3084158
9999999
Not Available
13
NUT SLIT
3084157
9999999
Not Available
14
WASHER
3083904
9999999
Not Available
15
LOCK NUT
3083905
9999999
Not Available
16
CRANKSHAFT ASSEMBLY
3084776
9999999
Not Available
16
CRANKSHAFT #1MAG SIDE
3084149
9999999
Not Available
17
CRANK PIN SPACER
3084155
9999999
Not Available
18
BEARING LARGE END
3084154
9999999
Not Available
19
SMALL END BERAING
3084168
9999999
Not Available
20
CONNECTING ROD
3084153
9999999
Not Available
21
CRANKSHAFT #2PTO SIDE
3084777
9999999
Not Available
22
SPACER #1
3084778
9999999
Not Available
22
SPACER #2
3084779
9999999
Not Available
23
PIN CRANK
3084152
9999999
Not Available

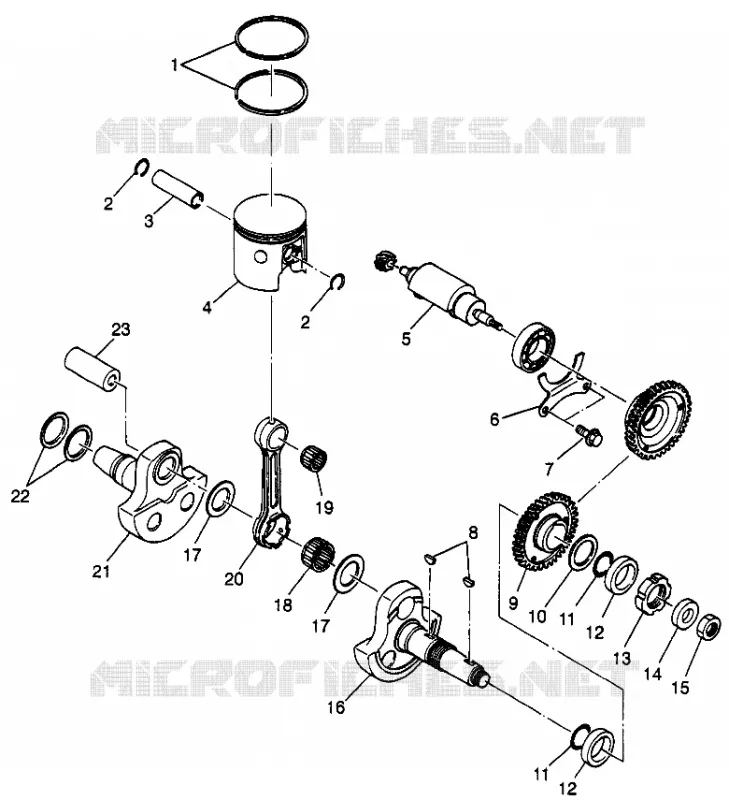

Find the detailed PISTON CRANKSHAFT SCRAMBLER 400L W97BC38C (4939893989C014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
