Parts Catalog
CHAINCASE
5
Parts Diagram
Parts Catalog
STEERING
by
DRIVE TRAIN
CHAINCASE
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
BEARING
3514308
3515909
$29,18 Unit Price incl. VAT
6
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010270
9999999
Not Available
8
BLOCK TIGHTENER
5630122
9999999
Not Available
8
TIGHTENER ASMGEARCASE
1332096
9999999
Not Available
8
WHEEL C/C IDLER
5630123
9999999
Not Available
8
BEARING
3553002
9999999
Not Available
8
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
8
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
9
SPKT;16T;13W;13T SPLINE
3221104
9999999
Not Available
10
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
11
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
12
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
13
CHAINCASE GASKET
5410277
9999999
Not Available
14
COVER; CHAINCASE
5630413
9999999
Not Available
15
SCREW
7512242
$4,19 Unit Price incl. VAT
16
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
17
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
18
SPKT 39T 13W RIBBED
3222064
9999999
Not Available
19
WASHER
7555864
$4,19 Unit Price incl. VAT
20
CHAIN 64P (13W) SILENT
3224052
9999999
Not Available
21
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
22
PLUG
7052115
$10,49 Unit Price incl. VAT
23
CHAINCASE-W/RATCHET MNT
5131568
9999999
Not Available
24
SCREW; CARRIAGE
7515477
9999999
Not Available

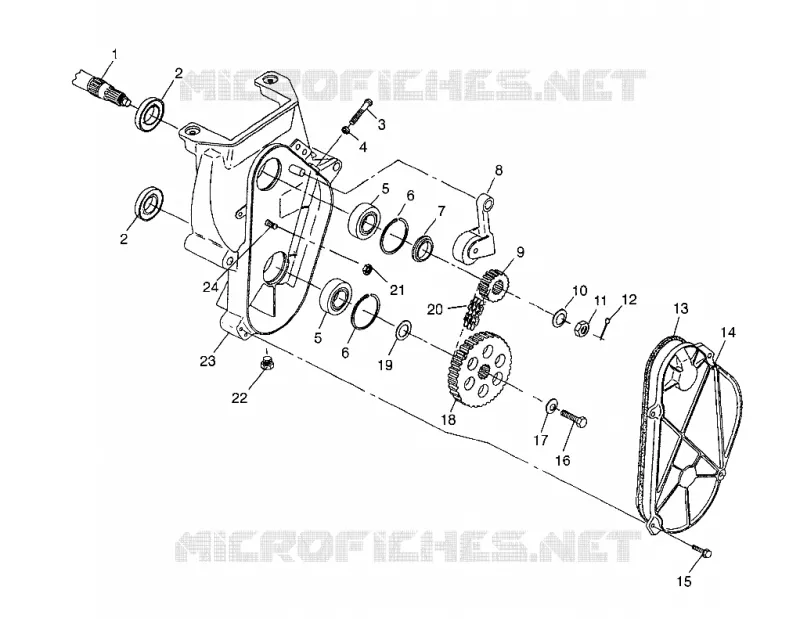

Find the detailed CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
