Engine displacement
1000
2
Year
2016
3
Trim
SPORTSMAN 1000 MD
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5

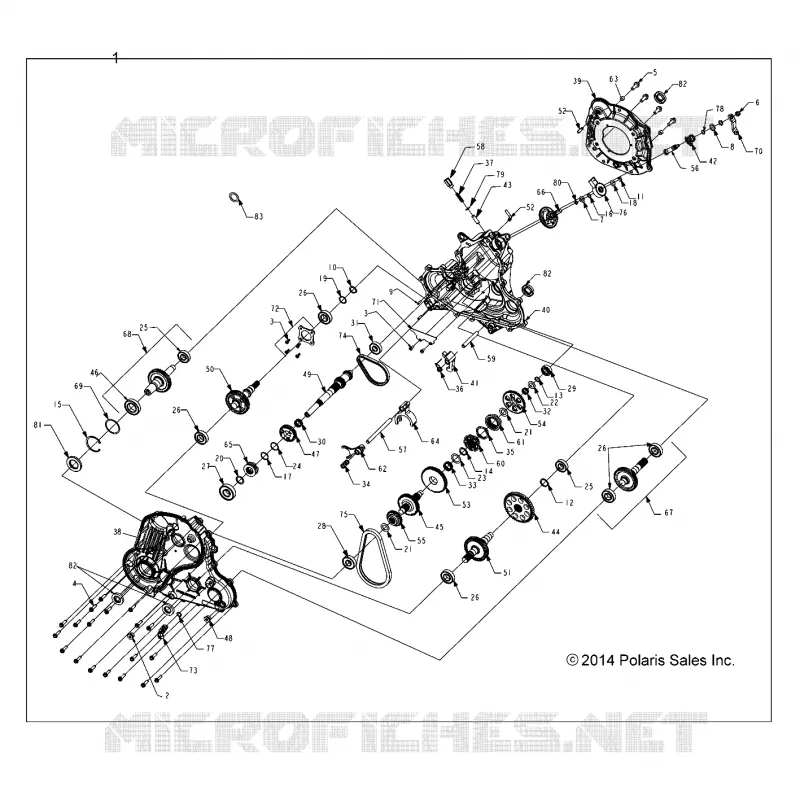

Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE MOUNTING, REAR
by
ELECTRICAL, TAILLIGHTS
DRIVE TRAIN, MAIN GEARCASE
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
21
22
23
24
25
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
82
82
83
1
ASM-TRANS 850;BOSS/LUK;1/1
1333180
$4 866,74 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
SCREW; TORX PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
4
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
5
SCREW; HEX
3234634
$25,19 Unit Price incl. VAT
6
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
7
WASHER THRUST
3234636
$14,69 Unit Price incl. VAT
8
THRUST WASHER
3234637
$20,99 Unit Price incl. VAT
9
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
10
SNAP RING
3233106
$10,49 Unit Price incl. VAT
11
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
12
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
13
EXTERNAL RETAINING RING
3234318
$5,76 Unit Price incl. VAT
14
RING; RETAINING BASIC; EXTERNA
3234327
$13,64 Unit Price incl. VAT
15
INTERNAL RETAINING RING
3234741
$17,84 Unit Price incl. VAT
16
RING RETAINNG BC EXTRNL SHR-50
3234639
$19,94 Unit Price incl. VAT
17
EXTERNAL RETAINING RING
3234641
$26,24 Unit Price incl. VAT
18
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
19
INPUT SHAFT SHIM PACK KIT
2204343
$54,59 Unit Price incl. VAT
20
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
21
SHIM
3234643
$68,24 Unit Price incl. VAT
22
SHIM
3234644
$26,24 Unit Price incl. VAT
23
WASHER; THRUST
3234646
$41,99 Unit Price incl. VAT
24
WASHER; THRUST
3234757
$20,99 Unit Price incl. VAT
25
BEARING
3233018
$47,24 Unit Price incl. VAT
26
BEARING
3233019
$54,59 Unit Price incl. VAT
27
BEARING
3233020
$80,84 Unit Price incl. VAT
28
BALL BEARING
3234651
$27,29 Unit Price incl. VAT
29
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
30
NEEDLE BEARING
3234759
$27,29 Unit Price incl. VAT
31
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
32
BEARING; NEEDLE
3234655
$27,29 Unit Price incl. VAT
33
NEEDLE BEARING
3234656
$27,29 Unit Price incl. VAT
34
SPRNG; COMP; .648 OD X 1.33
3234687
$16,79 Unit Price incl. VAT
35
SPRING; WAVE
3234688
$19,94 Unit Price incl. VAT
36
PARK PAWL TORSION SPRING
3234787
$52,49 Unit Price incl. VAT
37
COMPRESSION SPRING
3234790
$47,24 Unit Price incl. VAT
38
COVER-GEARCASE MACH GTO
3235507
9999999
Not Available
39
BELL HOUSING-MACH
3235196
$68,24 Unit Price incl. VAT
40
GEARCASE-MAIN GTO MACH
3235428
$593,24 Unit Price incl. VAT
41
PAWL PARK
3234692
3239339
$99,74 Unit Price incl. VAT
42
GEAR; SECTOR 38T
3234694
$62,99 Unit Price incl. VAT
43
DETENT BULLET
3234695
$68,24 Unit Price incl. VAT
44
SPROCKET; 44 TOOTH
3234998
$125,99 Unit Price incl. VAT
45
REVERSE SHAFT; 53 TOOTH
3234774
$367,49 Unit Price incl. VAT
46
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
47
HELICAL GEAR; 42T
3235133
$152,24 Unit Price incl. VAT
48
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
49
INPUT SHAFT; 25 TOOTH
3235063
$593,24 Unit Price incl. VAT
50
INPUT SHAFT
3235194
$435,74 Unit Price incl. VAT
51
OUTPUT SHAFT; REAR
3235505
$771,74 Unit Price incl. VAT
52
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
53
GEAR; 67T
3234706
$173,24 Unit Price incl. VAT
54
SPROCKET; 48 TOOTH
3234707
$68,24 Unit Price incl. VAT
55
SPROCKET 23 TOOTH
3234708
3235544
$73,49 Unit Price incl. VAT
56
BELLCRANK; SHIFT; SHAFT
3234712
$120,74 Unit Price incl. VAT
57
RAIL; SHIFT; SHAFT
3234714
$52,49 Unit Price incl. VAT
58
DETENT PLUG
3234715
$68,24 Unit Price incl. VAT
59
RAIL; PARK SHAFT
3234716
$52,49 Unit Price incl. VAT
60
DOG; ENGAGEMENT; LOW
3234718
$346,49 Unit Price incl. VAT
61
DOG-ENGAGEMENT GTO REV/LOW
3235341
$335,99 Unit Price incl. VAT
62
SHIFT FORK
3235342
$167,99 Unit Price incl. VAT
63
PIPE; KNOCK
3234765
$26,24 Unit Price incl. VAT
64
SHIFT FORK
3234766
$167,99 Unit Price incl. VAT
65
DOG-ENGAGEMENT GTO HIGH
3235190
$136,49 Unit Price incl. VAT
66
SWITCH SHAFT SUBASSEMBLY
3234767
$230,99 Unit Price incl. VAT
67
OUTPUT SHAFT SUBASSEMBLY; FRONT
3235506
$556,49 Unit Price incl. VAT
68
PRIMARY SHAFT SUB ASSEMBY; 50 TOOTH
3235191
$577,49 Unit Price incl. VAT
69
SHIM KIT
2204268
$68,24 Unit Price incl. VAT
70
BELLCRANK; 15 TOOTH SPLINE
3234724
$52,49 Unit Price incl. VAT
71
DEFLECTOR; OIL
3234725
$26,24 Unit Price incl. VAT
72
SUB ASSSEMBLY; BEARING COVER
3235198
$40,94 Unit Price incl. VAT
73
SENSOR-SPEED TRANS
4012167
4082135
$204,74 Unit Price incl. VAT
74
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
75
SILENT CHAIN
3234738
$456,74 Unit Price incl. VAT
76
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
77
O-RING
3234302
$13,64 Unit Price incl. VAT
78
O-RING
3233828
$12,59 Unit Price incl. VAT
79
O-RING
3234729
$25,19 Unit Price incl. VAT
80
O-RING; 9.5 MM X 2 MM
3234730
$14,69 Unit Price incl. VAT
81
TRIPLE LIP SEAL
3234769
$78,74 Unit Price incl. VAT
82
VITON TRIPLE LIP SEAL
3234892
$68,24 Unit Price incl. VAT
83
RIBBED WASHER
3235508
$7,34 Unit Price incl. VAT
