Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
STEERING, STEERING POST ASM.
by
DRIVE TRAIN, SECONDARY CLUTCH
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
2
3
3
4
4
5
5
5
5
5
6
7
7
7
8
9
10
11
12
13
13
14
15
1
ASM-GEARCASEFR 12PCKT NOADC ZN
1333569
1337617
Not Available
2
OUTLET COVER ASSEMBLY
3235634
3236667
$955,49 Unit Price incl. VAT
3
OUTPUT HUB ASSEMBLY
3235911
3236675
$782,24 Unit Price incl. VAT
4
FASTENER KIT
3235433
$68,24 Unit Price incl. VAT
5
SEAL REPAIR KIT
3235434
3236671
$136,49 Unit Price incl. VAT
6
PLATE-4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
BEARING KIT
3235435
$202,64 Unit Price incl. VAT
8
CAGE ROLLER
3235624
$12,59 Unit Price incl. VAT
9
ROLL CAGE ASSEMBLY
3235625
$325,49 Unit Price incl. VAT
10
GEARCASE KIT ASSEMBLY
3235436
3236680
$1 343,99 Unit Price incl. VAT
11
DRAIN PLUG
2203738
$68,24 Unit Price incl. VAT
12
FILL PLUG
2203739
$83,99 Unit Price incl. VAT
13
GEAR HOUSING AND PINION KIT
3235636
3239382
$1 280,99 Unit Price incl. VAT
14
TORISON SPRING AND RETAINER KIT
3235712
$68,24 Unit Price incl. VAT
15
INPUT COVER KIT
3235843
$330,74 Unit Price incl. VAT

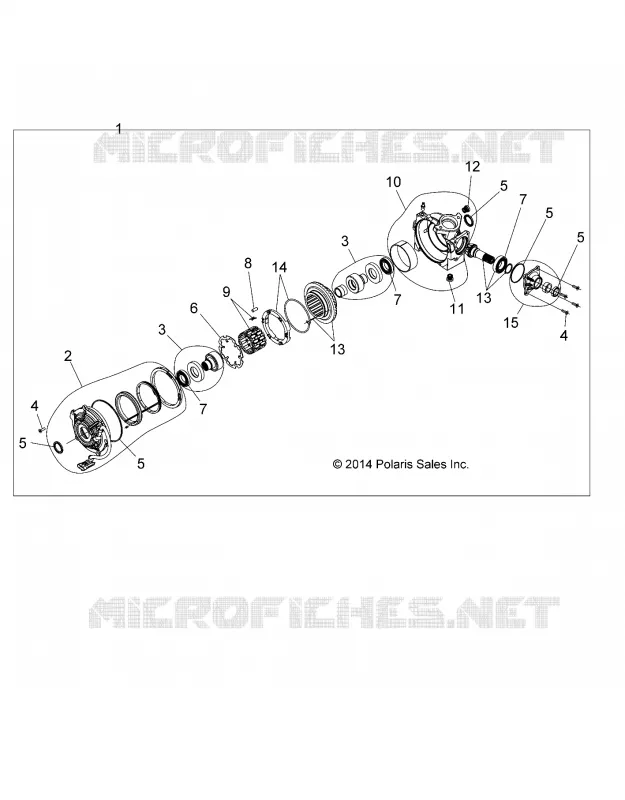

Find the detailed DRIVE TRAIN, FRONT GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
