1
Engine displacement
autre
2
Year
1994
3
Trim
SPORT - 0940443
4
Parts Catalog
ENGINE MOUNTING SPORT 0940443 AND SPORT SKS 0940243 (4925052505029A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY SPORT 0940443 AND SPORT SKS 0940243 (4925052505028A)
by
EXHAUST SYSTEM SPORT 0940443 AND SPORT SKS 0940243 (4925052505030A)
ENGINE MOUNTING SPORT 0940443 AND SPORT SKS 0940243 (4925052505029A)
1
2
3
4
5
5
5
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
27
1
2
3
4
5
5
5
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
27
1
BOLT
7512566
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
5
ENG EC44-3PM-01 [No Longer Available]
1211477
Not Available
5
ENG.(S.B.)EC44-3PM025 [No Longer Available]
3084623
Not Available
6
HANDLE-RECOIL
5430520
Not Available
7
SCREW
7512530
$10,49 Unit Price incl. VAT
8
WASHER
7555740
$3,14 Unit Price incl. VAT
9
MOUNT ENGINE
5410390
9999999
Not Available
10
SPACER (MTR.MT.)
5332778
9999999
Not Available
11
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
12
PLATE MTR.MT. Substituted by 5131192
5131099
Not Available
13
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
14
BOLT
7512539
$7,34 Unit Price incl. VAT
15
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
16
WASHER
7555721
$2,09 Unit Price incl. VAT
17
MOUNT
3110022
9999999
Not Available
18
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
19
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
FUEL FILTER
2530008
9999999
Not Available
22
CABLE THROTTLE W/OIL
7080552
9999999
Not Available
23
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
24
VALVE FUEL SHUT-OFF
7052060
9999999
Not Available
25
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
26
FUEL LINE; 600 CM
8450040600
Not Available
27
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT

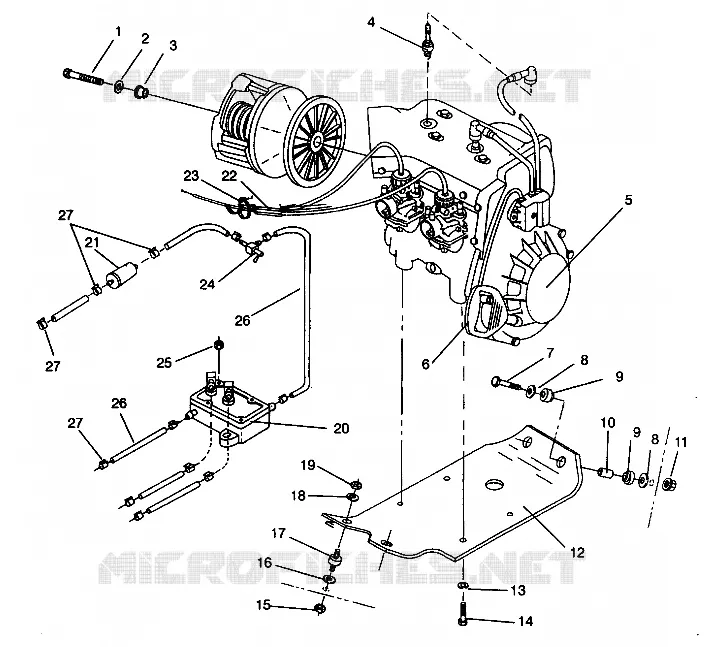

Find the detailed ENGINE MOUNTING SPORT 0940443 AND SPORT SKS 0940243 (4925052505029A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
