SEAT, PASSENGER for POLARIS SPORTSMAN TOURING XP 1000 EU from 2023

SEAT, PASSENGER

1

ASM-SEAT BOTTOM PASSENGER

2636787

$272,99 Unit Price incl. VAT

2

ASM-SEAT BACKREST PASSENGER

2636788

$330,74 Unit Price incl. VAT

3

WELD-FRAME BASE SEAT

1021269458

Not Available

4

ASM-STRAP SEAT LATCH

2686230

$27,29 Unit Price incl. VAT

5

PLATE-LATCH SEAT

5259991

2686230

$27,29 Unit Price incl. VAT

6

PLATE-LATCH SEAT GUIDE

5259990

$16,79 Unit Price incl. VAT

7

TUBE-FRAME BACK SEAT M.BLK

5338614458

Not Available

8

GROMMET-SEAT LATCH

5418181

$6,29 Unit Price incl. VAT

9

PLUG-COMPARTMENT

5418084

$6,29 Unit Price incl. VAT

10

BUMPER-RUBBER

5415293

$6,29 Unit Price incl. VAT

11

PASSENGER STORAGE SEAL

5415486

$115,49 Unit Price incl. VAT

12

SEAT-LATCH BODY TOP

5451665

$27,29 Unit Price incl. VAT

13

SEAT-LATCH BODY BOTTOM

5451666

$27,29 Unit Price incl. VAT

14

HANDLE-SEAT LATCH BASE

5451667

$19,94 Unit Price incl. VAT

15

SEAT MOUNT; BASE; FRONT

5451669

$31,49 Unit Price incl. VAT

16

INSERT-GRIP PASSENGER

5451795

$12,59 Unit Price incl. VAT

17

SEAT LATCH PIN

5910306

$19,94 Unit Price incl. VAT

18

SPRING-LATCH SEAT

7082026

$13,64 Unit Price incl. VAT

19

SCR-1/4-20X1.75 TR/TX-M

7518504

$3,14 Unit Price incl. VAT

20

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

$7,34 Unit Price incl. VAT

21

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

22

HEX FLANGE SCREW 10 MM X 1.25 MM X 30 MM

7519059

$5,76 Unit Price incl. VAT

23

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

24

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

25

LOCK WASHER

7552614

$3,14 Unit Price incl. VAT

26

POP RIVET

7621224

9999999

Not Available

27

PLATE-MOUNT PIN M.BLK

5259998458

Not Available

28

LATCH PLUNGER

7519251

$47,24 Unit Price incl. VAT

29

NUT-1/4-20 NYLOC FLANGED-B

7547494

$7,34 Unit Price incl. VAT

30

PASSENGER STORAGE BOX

5451765

$194,24 Unit Price incl. VAT

31

ASM-HANDLE PASSENGER OVERMOLD

2638541

$157,49 Unit Price incl. VAT

31

PLUG SWITCH

5457218

$15,74 Unit Price incl. VAT

32

PASSENGER STORAGE LID

5451784

$73,49 Unit Price incl. VAT

33

HANDLE-COVER PASSENGER

5451794

$12,59 Unit Price incl. VAT

34

SEAT-BACK COVER PASSENGER

5451766

$83,99 Unit Price incl. VAT

35

PLATE-LATCH SPACER

5260517

$15,74 Unit Price incl. VAT

36

SCR-M6X1X16 TR/TX-M

7518936

$7,34 Unit Price incl. VAT

37

SCREW M5X0.8X10 PHPN ZY L/W SE

7517867

$3,14 Unit Price incl. VAT

38

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

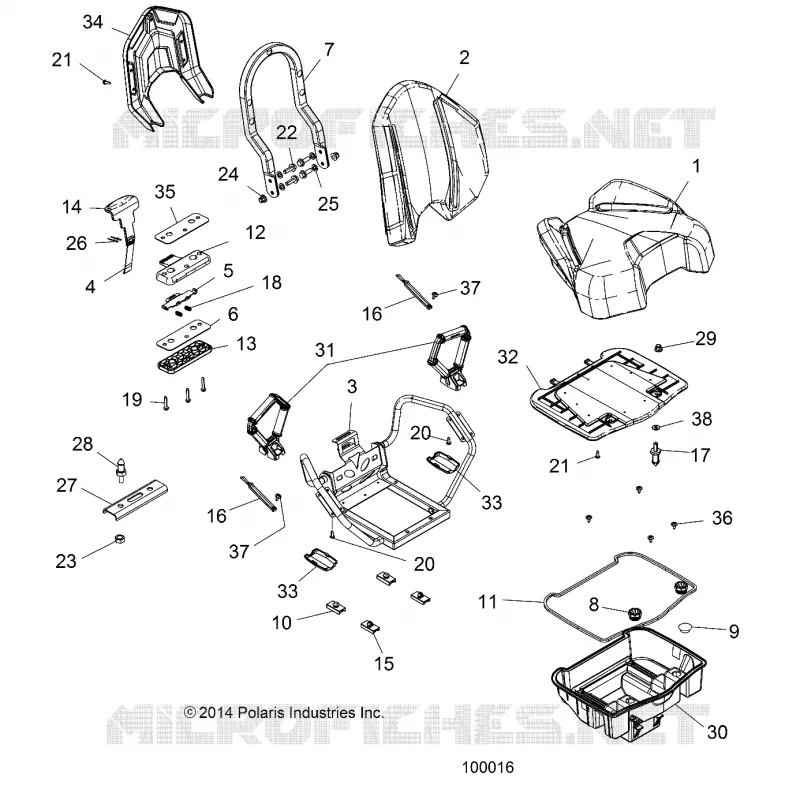

Find the detailed SEAT, PASSENGER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
