1
Engine displacement
1000
2
Year
2023
3
Trim
SPORTSMAN TOURING XP 1000 EU
4
Parts Catalog
ENGINE, OIL SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, TRANSMISSION MOUNTING & LONG BLOCK
by
ENGINE, SENSORS
ENGINE, OIL SYSTEM
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
1
ASM-REGULATOR VALVE;85 PSI
2520672
$89,24 Unit Price incl. VAT
2
OIL PUMP ASSEMBLY
2521041
$283,49 Unit Price incl. VAT
3
CAP-OIL PUMP;Q50/60
2520560
$62,99 Unit Price incl. VAT
4
FILTER ADAPTOR; STRAIGHT
2521530
$68,24 Unit Price incl. VAT
5
OIL FILTER
2520799
$19,20 Unit Price incl. VAT
5
FILTER-HD OIL (3.355)(12)
2522498
$27,29 Unit Price incl. VAT
6
SCR-HXFL-M6X1.0X20 8.8 ZY3
7528224
$9,44 Unit Price incl. VAT
6
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
7
OIL PUMP CAP SEAL; Q50/60
3610128
$12,59 Unit Price incl. VAT
8
PLATE-WINDAGE PTO 952
5257984
$104,99 Unit Price incl. VAT
9
PLATE-WINDAGE MAG Q60
5250397
$68,24 Unit Price incl. VAT
10
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
11
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
12
SOCKET HEAD SCREW; 6 MM X 12 MM
7517739
$17,84 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X16 8.8ZY3DL204
7519329
$7,34 Unit Price incl. VAT
14
TUBE-OIL TRANSFER
2522027
$62,99 Unit Price incl. VAT
15
OIL FILL DIPSTICK
2521028
$68,24 Unit Price incl. VAT
16
O-RING 26.65 IN X 2.62
5412530
$3,14 Unit Price incl. VAT
17
O-RING .364X.504X.07 0600083
5413007
9999999
Not Available

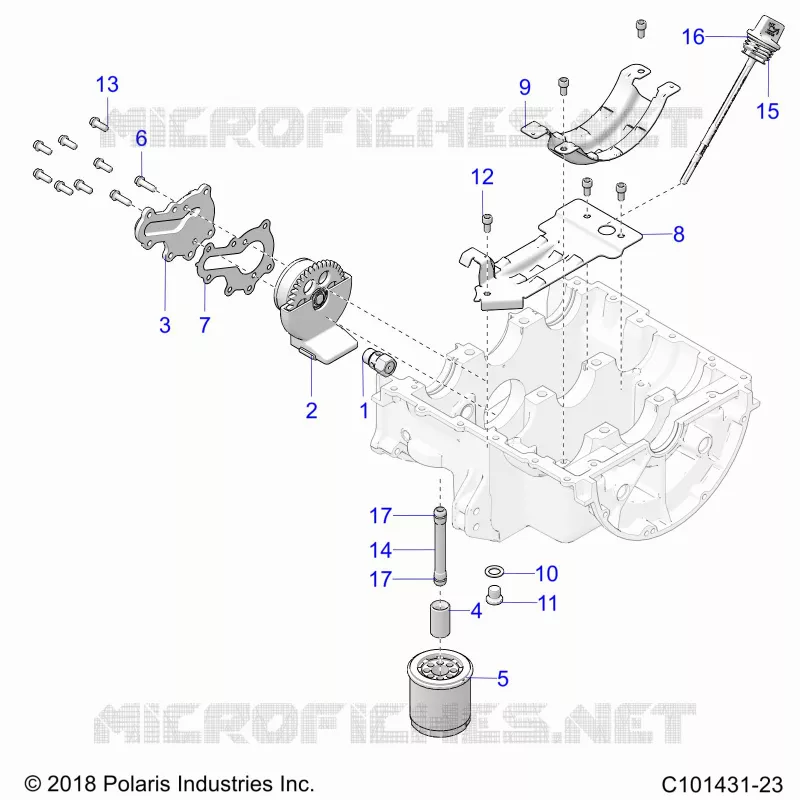

Find the detailed ENGINE, OIL SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
