1
Engine displacement
autre
2
Year
2017
3
Trim
GEM (R24) - L17G2/4/6/EURO ALL OPTIONS
4
Parts Catalog
ELECTRICAL, BATTERY, LI-ION, 8.9KW
5

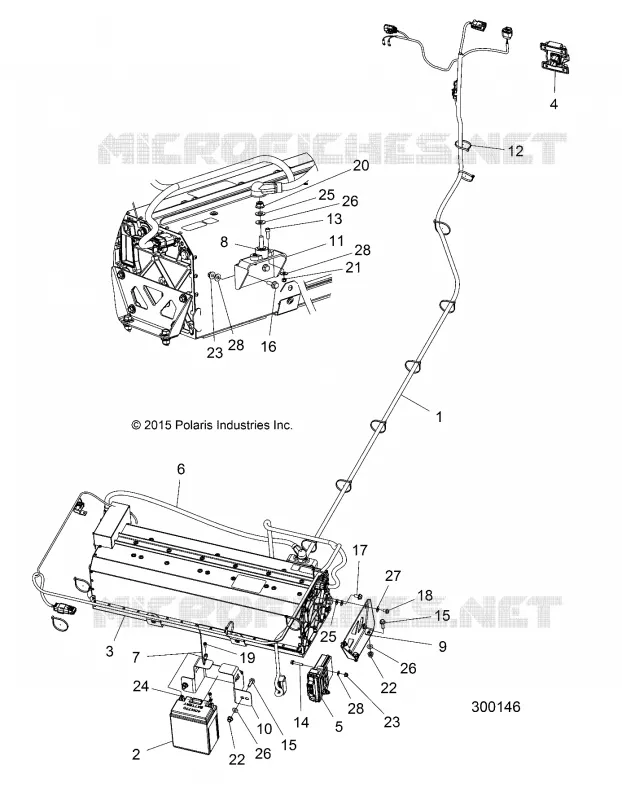

Parts Diagram
Parts Catalog
ELECTRICAL, BATTERY, LI-ION, 8.9KW
by
ELECTRICAL, BEACON
ELECTRICAL, BATTERY, LI-ION, 8.9KW
11
12
13
14
15
15
16
17
18
19
20
21
22
22
23
23
24
25
25
26
26
26
27
28
28
28
1
ASM-HARNESS LITHIUM E4
2413374
9999999
Not Available
1
SINGLE POLE DOUBLE THROW RELAY
4011284
$68,24 Unit Price incl. VAT
2
12V BATTERY; 210 CCA 12AH
4014770
4017819
$225,74 Unit Price incl. VAT
3
COSLIGHT-BRAMMO BAT-44V;LI;8.9
4017366
9999999
Not Available
3
BATTERY-44V LI-ION 8.9KWH
4015495
9999999
Not Available
4
ECU; UNPROGRAMMED
4016193
$593,24 Unit Price incl. VAT
5
ECU-UNPROGRAMMED BMC BRAMMO
4015687
9999999
Not Available
6
CABLE-BTRY LI-ION POS LONG
4015891
9999999
Not Available
7
CABLE-BTRY LI-ION NEG 12V
4015893
9999999
Not Available
8
TERMINAL-POS
4016008
9999999
Not Available
9
BRKT-BATTERY SUPPORT;BLK
5261281329
Not Available
10
BRKT-BTRY HOLD BLK
5261942458
Not Available
11
BRKT-TERMINAL MOUNT
5261943
9999999
Not Available
12
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
13
SCREW SOCHD M5X16
7516610
$7,34 Unit Price incl. VAT
14
SCREW
7516827
$12,59 Unit Price incl. VAT
15
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
16
BOLT-M6X1.0X20 HXFLG OLIVE D
7518613
$7,34 Unit Price incl. VAT
17
SCR-HH-M8X1.25X20 A2 EP
7520454
9999999
Not Available
18
HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM
7519145
$7,34 Unit Price incl. VAT
19
SCR-PHHX-M6X1X12 LPS BATTERY
7520056
9999999
Not Available
20
NUT
7542334
$2,09 Unit Price incl. VAT
21
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
22
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
23
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
24
NUT-RECT M6X1 LPS BATTERY
7547732
9999999
Not Available
25
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
26
WASHER
7555954
$9,44 Unit Price incl. VAT
27
WASHER
7556064
$9,44 Unit Price incl. VAT
28
WASHER
7558203
$6,29 Unit Price incl. VAT

Find the detailed ELECTRICAL, BATTERY, LI-ION, 8.9KW POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
