Engine displacement
800
2
Year
2016
3
Trim
800 SWITCHBACK PRO-S
4
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
by
STORAGE BAG
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
1
2
3
4
5
6
7
8
9
10
11
12
13
1
CLIP-HARNESS 3-13MM INTERLCK
7081871
$7,34 Unit Price incl. VAT
2
CABLE TIE
7080356
$4,19 Unit Price incl. VAT
3
FUEL LINE ASSEMBLY; RETURN; PFA; PROG
2521345
$157,49 Unit Price incl. VAT
4
ASM-FUEL LINE SUPPLY PFA PROG
2521344
9999999
Not Available
5
INJECTOR HARNESS W/ LEAD
4014715
$488,24 Unit Price incl. VAT
6
SCR-M5X0.8X12 SHCS-SS
7517985
9999999
Not Available
7
O-RING-BOSCH EV-14 UPPER
1500198
$20,25 Unit Price incl. VAT
8
BOSCH O-RING
5412891
$2,09 Unit Price incl. VAT
9
INJECTOR ELASTOMER RUBBER BUSHING
5436287
$6,29 Unit Price incl. VAT
10
THROTTLE BODY ASSEMBLY; 48 MM
1205241
$902,99 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
FUEL RAIL ASSEMBLY
2521382
2522185
$824,24 Unit Price incl. VAT
13
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT

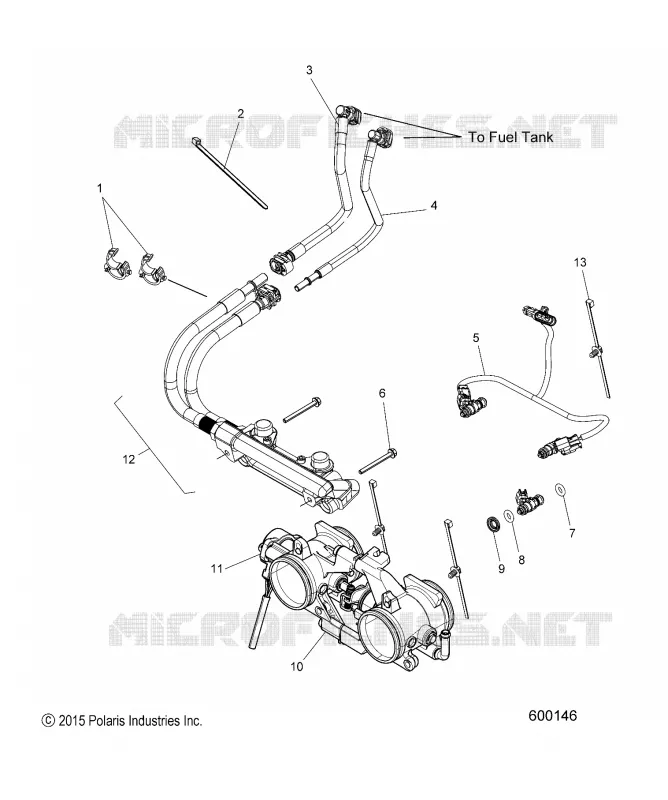

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
