1
Engine displacement
800
2
Year
2016
3
Trim
800 SWITCHBACK PRO-S
4
Parts Catalog
WIRE HARNESS
5
Parts Diagram
Parts Catalog
SWITCHES, SENSORS AND COMPONENTS
by
ENGINE, AIR INTAKE SYSTEM
WIRE HARNESS
1
2
3
4
5
5
5
5
5
5
6
6
6
7
7
8
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
1
HARNESS-MAIN LE STD
2412445
9999999
Not Available
2
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
3
CAPACITOR 22000 MICRO
4013412
$125,99 Unit Price incl. VAT
4
FILTER CAPACITOR
4011441
$194,24 Unit Price incl. VAT
5
COVER-FUSEHOLDER
4012260
$19,94 Unit Price incl. VAT
5
FUSE-2AMP ATM BLADE STYLE MINI
4010752
$10,49 Unit Price incl. VAT
6
MICRO RELAY
4011998
$99,74 Unit Price incl. VAT
7
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
8
COVER-HARNESS
2685075
9999999
Not Available
8
COVER-HARNESS LARGE
2685344
9999999
Not Available
9
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
9
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
9
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
10
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
11
STRAP-CABLE TIEW/EDGECLIP3-6MM
7081824
$26,24 Unit Price incl. VAT
12
HARNESS-HOOD STD
2412552
9999999
Not Available
13
RESISTOR PULL UP MODULE
2412732
$62,99 Unit Price incl. VAT
14
HARNESS-HOOD PREM
2412714
9999999
Not Available
15
E-START HARNESS
2412713
$220,49 Unit Price incl. VAT
16
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
17
ELECTRONIC OIL PUMP JUMPER
2412793
$104,99 Unit Price incl. VAT
18
LED TAILLIGHT JUMPER; 197.6 MM
2412791
9999999
Not Available
19
HARNESS-USB MFD RZN
2412818
$99,74 Unit Price incl. VAT

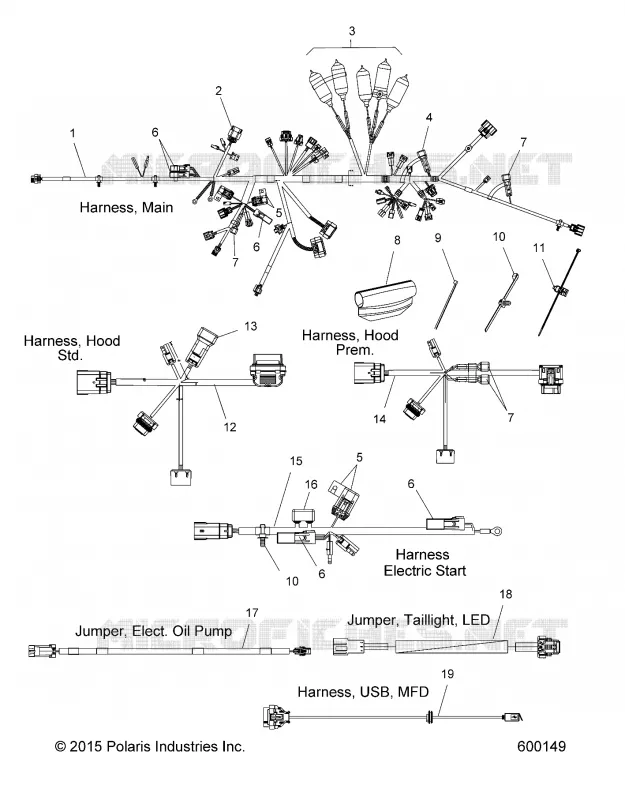

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
