REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC for POLARIS SPORTSMAN TOURING 1000 48" 49S from 2023

REAR SUSPENSION CONTROL ARMS

SUSPENSION, FRONT SHOCK

REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC

1

CARRIER-BEARING MACH RH

5143608

$121,79 Unit Price incl. VAT

1

CARRIER-BEARING MACH LH

5143607

$121,79 Unit Price incl. VAT

2

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

3

SEALED BALL BEARING; 44 X 72 X 33.1

3514699

$73,49 Unit Price incl. VAT

4

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

5

CASTLE NUT; 18 MM X 1.5 MM X 13 MM

7547406

$9,44 Unit Price incl. VAT

6

CONE WASHER

7555796

$14,69 Unit Price incl. VAT

7

HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM

7518467

$10,49 Unit Price incl. VAT

8

HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM

7518675

$10,49 Unit Price incl. VAT

9

WHEEL HUB

5136946

$178,49 Unit Price incl. VAT

10

BRAKE DISC

5250205

$141,74 Unit Price incl. VAT

11

STUD-WHEEL M10X1.25X58-10.9

7521329

$7,34 Unit Price incl. VAT

12

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

13

LOWER CONTROL ARM A ARM SHAFT

5136473

5145086

$68,24 Unit Price incl. VAT

13

SHAFT-A-ARM LCA 0.75 OD

5145086

$68,24 Unit Price incl. VAT

14

PIVOT SHAFT; 104.9 MM

5137590

$16,79 Unit Price incl. VAT

15

CONTROL ARM BUSHING; LOWER; .75 IN

5437651

$12,59 Unit Price incl. VAT

16

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

16

HD BUSHING W/ SEAL ASSEMBLY(4)

1543367

$19,94 Unit Price incl. VAT

17

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

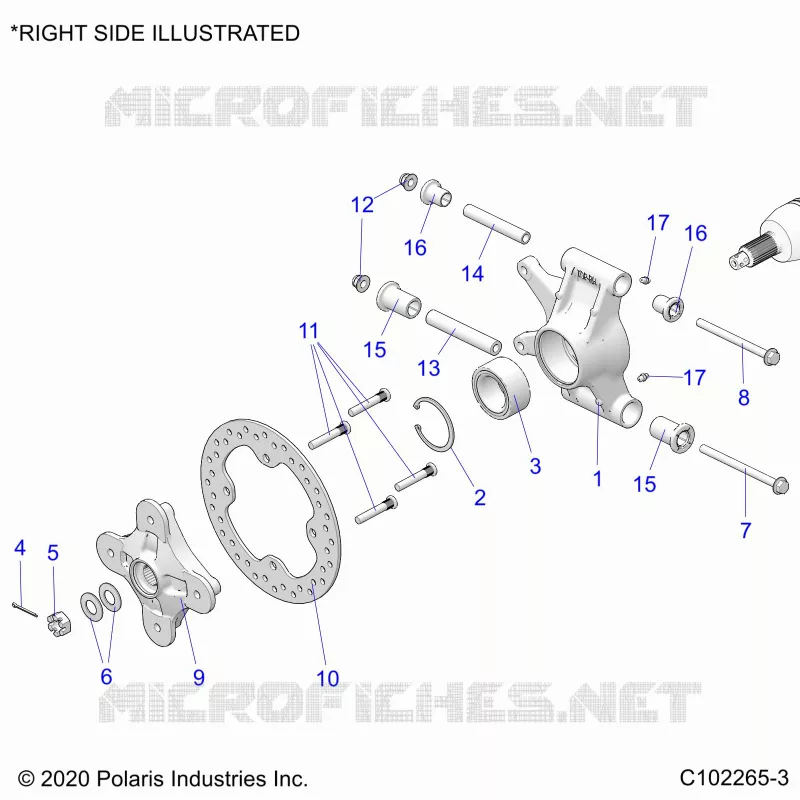

Find the detailed REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
